Hall Sensor Magnetic Keyboard Switches Explained: Benefits for FPS Gamers

Success in elite esports hinges on winning milliseconds of time. The optimized outcome differentiators are decisions made in the time it takes to blink, as well as instantaneous reaction time. For this reason, the esports market is showing vast growth and demand for Hall sensor magnetic keyboard switches. This type of switch replaces mechanical contact with magnetic sensing and replaces it with magnetic sensing technology.

Hall effect switches have the benefits of being able to quickly stabilize a signal, have custom actuation points, and can have a quick trigger ability. With a design that is reminiscent of linear switches, this technology is perfect for gamers that desire and seek customizable and highly responsive key control.

After years of developing various mechanical and optical switches, Gateron has released the Magnetic Spark HE Switch. This is a dual-drive modular Hall sensor magnetic switch that is targeted for the high-speed gaming market.

What are Hall Sensor Magnetic Keyboard Switches?

Hall sensor magnetic keyboard switches are based on and operate around the Hall effect. Depressing a key causes the switch's permanent magnet to move toward the portion of the keyboard PCB that contains the Hall sensor. The Hall sensor experiences a change in the magnetic field. Unlike traditional mechanical switches that read an "on" or "off" state, Hall sensors detect the exact position of a switch and its movements in real-time like an analog system.

This technology has a lot of benefits, including:

•   Detection without contact

Because Hall effect switches operate without an interaction between contacts, this technology also eliminates the side effects of contact degradation and bounce. Traditional mechanical switches suffer from these issues.

•   Actuation Control

Due to its full-range sensing ability, users can now program preferred actuation points via the keyboard software, as opposed to being restricted to a default actuation distance.

•   Stable performance over time

The absence of physical actuation contacts enables the system to retain stable response characteristics, even with extensive usage.

For the Magnetic Spark HE Switch, the sensing range is defined by the magnetic flux at rest, which measures approximately 122±8 GS, and at bottom-out, which measures approximately 550±30 GS under a 1.2 mm PCB configuration.

Why Hall Effect Switches Improve FPS Gaming

Hall effect switches and Hall effect sensors offer features and characteristics beneficial to input flexibility when utilized in conjunction with the high-speed inputs associated with FPS (First Person Shooter) gaming such as jiggle peeking and counter-strafing, among other techniques.

1. Adjustable Pre-Travel for Quick Response

A major benefit of Hall effect switches is that their moving components are custom adjustable in contrast to traditional mechanical switches which have fixed points of actuation.

Swapping for a switch with a shorter actuation distance is beneficial for creating a competitive edge through game-play responsiveness, while a longer distance can inhibit unintentional switch activations during moments of game-play focus.

2. Rapid Trigger to Reset for Direction Adjustments

Rapid trigger is another major benefit of Hall effect switches.

In contrast to traditional switches which require the moving component to reach a fixed position in order for the switch to reset, rapid trigger switches can be adjusted to require almost no movement at all for a switch to reset.

This is highly beneficial when considering the game-play mechanics of an FPS (first person shooter) and is especially beneficial for A/D (left and right) movements as the precision of your movements may require you to be highly tactical in order to be effective.

3. Performance Consistency

Long game-play sessions can be detrimental to the performance of most switches, however, use magnetic sensing to register key presses without physical contact, eliminating the wear and bounce issues found in traditional switches.

The Magnetic Spark HE Switch is rated for over 150 million activations.

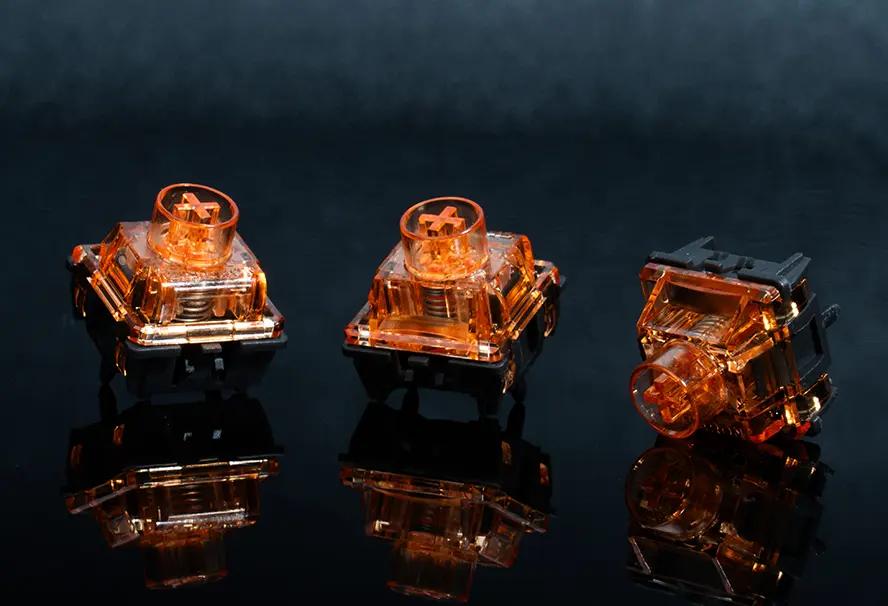

Engineering Design of the GATERON Magnetic Spark HE Switch

With the Magnetic Spark HE, GATERON have developed a modular dual-drive structure utilizing Hall effect.

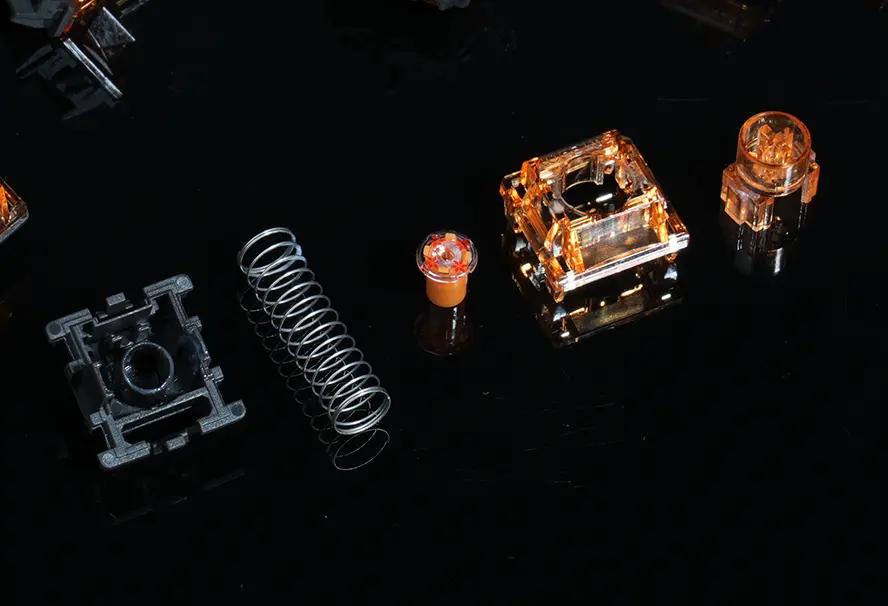

Modular Dual-Drive Structure

The switch separates the stem mechanism and magnetic module into two coordinated sections.

Movement of the key is controlled in the upper module, while the lower module contains the Hall sensor side magnet. This structure helps achieve and maintain consistent alignment through the entire travel distance of the switch of 3.2±0.1 mm.

Design features of this switch include:

•   Positive-lock Structure

The stem and housing module of the magnet incorporate a locking design to minimize movement deviation and ensure consistent actuation.

•   Cylindrical stem design

The design of the stem as a cylinder helps provide support along the radius and reduces wobble when the key is pressed off center.

•   Characteristics of a Linear Switch

A 22 mm spring, a 33±5 gf initial force and 45±10 gf bottom-out force are all features of this switch which help create a smooth linear feel and design for both gaming and typing.

Design Features of an Acoustic and a Practical Nature

Despite Hall effect switch technology focusing on performance, for keyboard enthusiasts, the acoustic design does not need to suffer.

The Magnetic Spark HE incorporates several features to help the design of the Switch:

•   Factory pre-lubrication: This is done on surfaces that cause friction in order to retain scratch and enhance smoothness.

•   Integrated acoustic chamber design: This design helps provide a cleaner linear switch sound profile.

•   Top housing of the switch is designed with a light diffuser to help provide better diffusion of RGB for gaming.

•   Bottom drainage structure: Provides additional protection against minor liquid exposure.

GATERON Magnetic Spark HE Switch Specifications

Compatibility Considerations

Hall sensor magnetic keyboard switches require keyboards with integrated Hall effect sensors on the PCB. They cannot be installed directly into standard mechanical keyboard sockets.

Before upgrading, users should confirm that their keyboard supports:

•   Hall effect magnetic switches

•   N-pole facing down magnetic orientation

•   Software-based actuation and rapid trigger adjustment

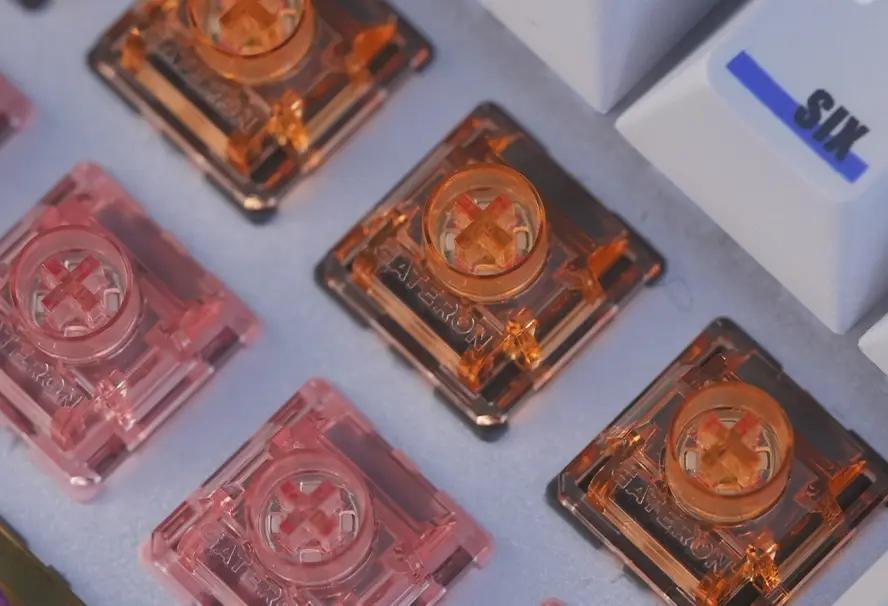

The Magnetic Spark HE Switch follows an MX-style housing footprint, allowing compatibility with many standard keycap sets when used with supported Hall effect keyboards.

Advanced Control for FPS Gaming

With FPS players in mind, the use of Hall Effect sensors in Magnetic Switches for a keyboard highlights the next generation of keyboard technology. It allows players to delight in a customizable experience with adjustable actuation, instantaneous response, and a level of durability that is unmatched in the industry.

GATERON Magnetic Spark HE Switches offer players a lightweight linear switch experience in a modular design, engineered with noise control in mind.For the gamers using compatible Hall Effect key switches, it is a reward system for years of research a superior FPS experience

FAQs

Q1. Do Hall sensor magnetic switches wear out?

They last longer than other switches because they don't use metal contacts and work on a contactless principle.

Q2. Are Hall effect switches good for FPS gaming?

Definitely. They help to achieve higher levels of control in a game using adjustable actuation and rapid trigger.

Q3. What does a Rapid Trigger feature do on a magnetic keyboard switch?

A Rapid Trigger feature resets the switch after movement of the key, allowing for much quicker inputs.

Q4. Can Hall sensor switches be used in place of mechanical switches?

Not really. Hall sensor switches can only be used in keyboards designed specifically for them, and they are not compatible with standard mechanical keyboards.

Q5. Is it possible to change the actuation point of Hall sensor switches?

Yes, this is possible using the software of the keyboard that is compatible.
