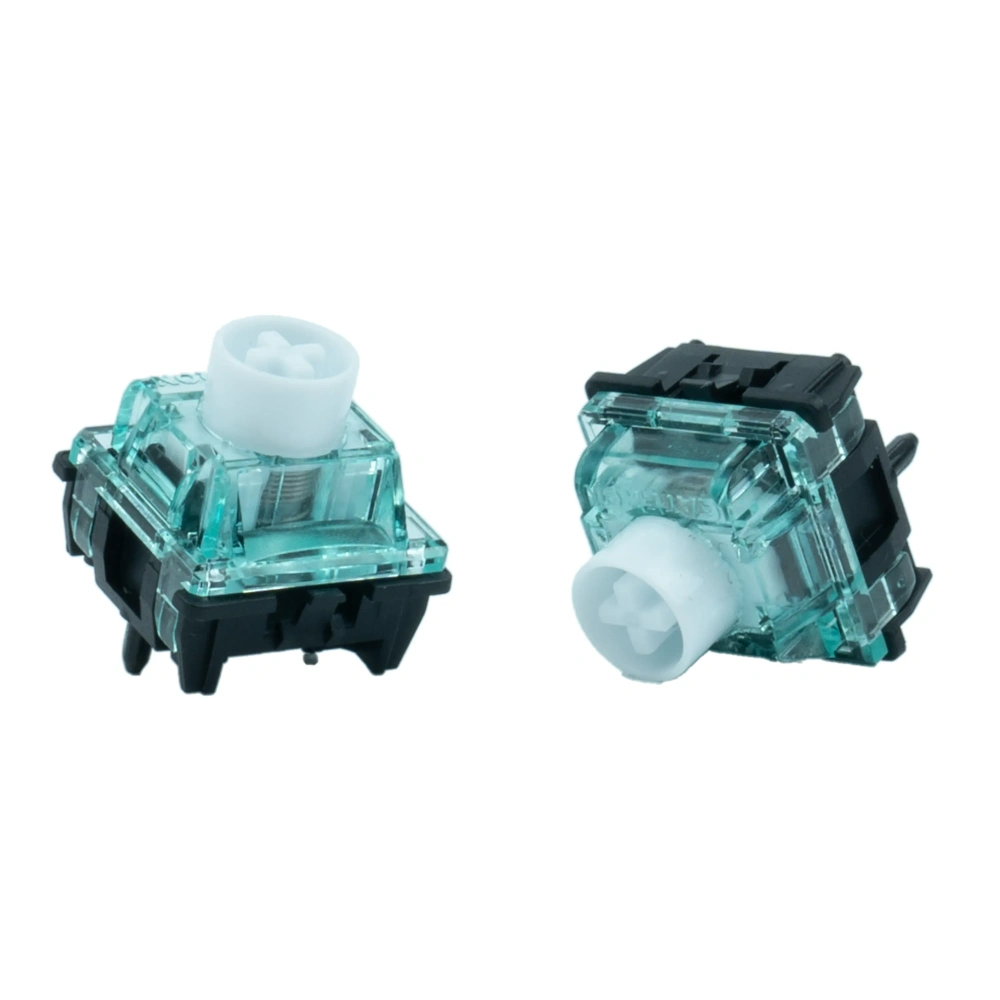

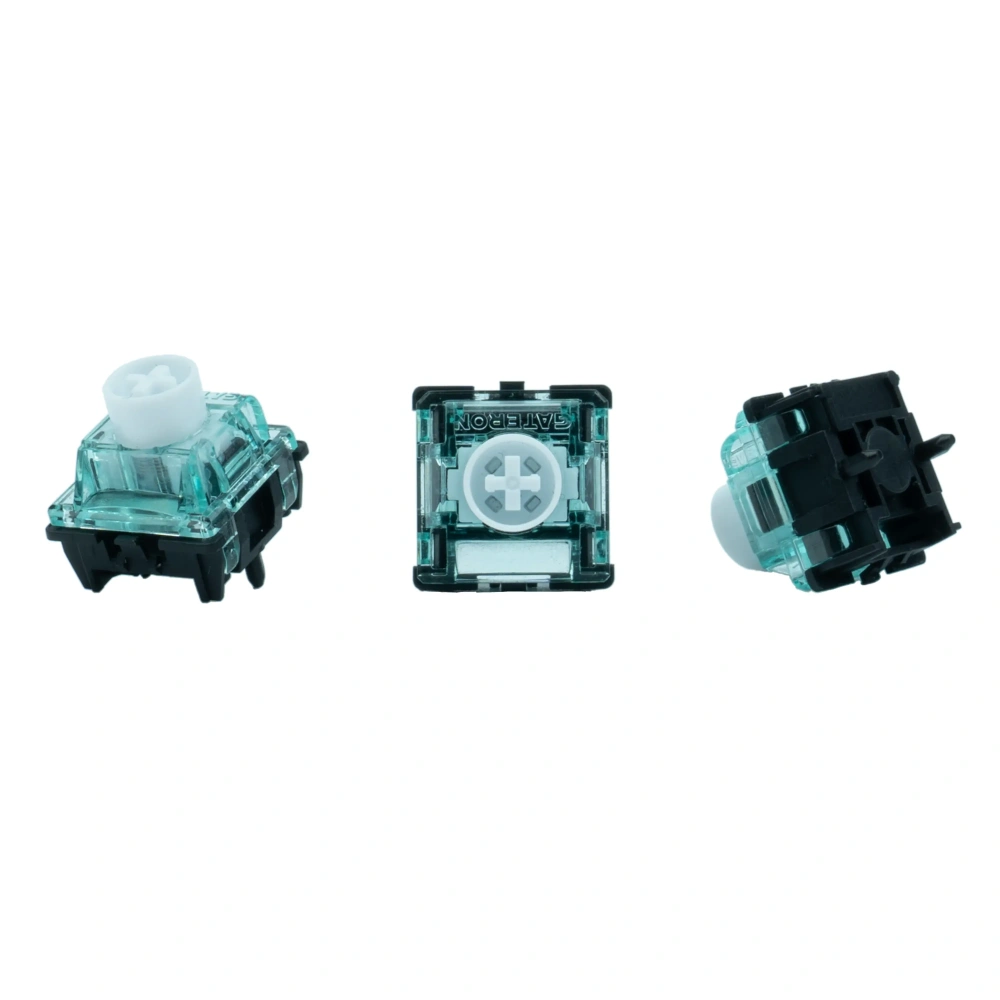

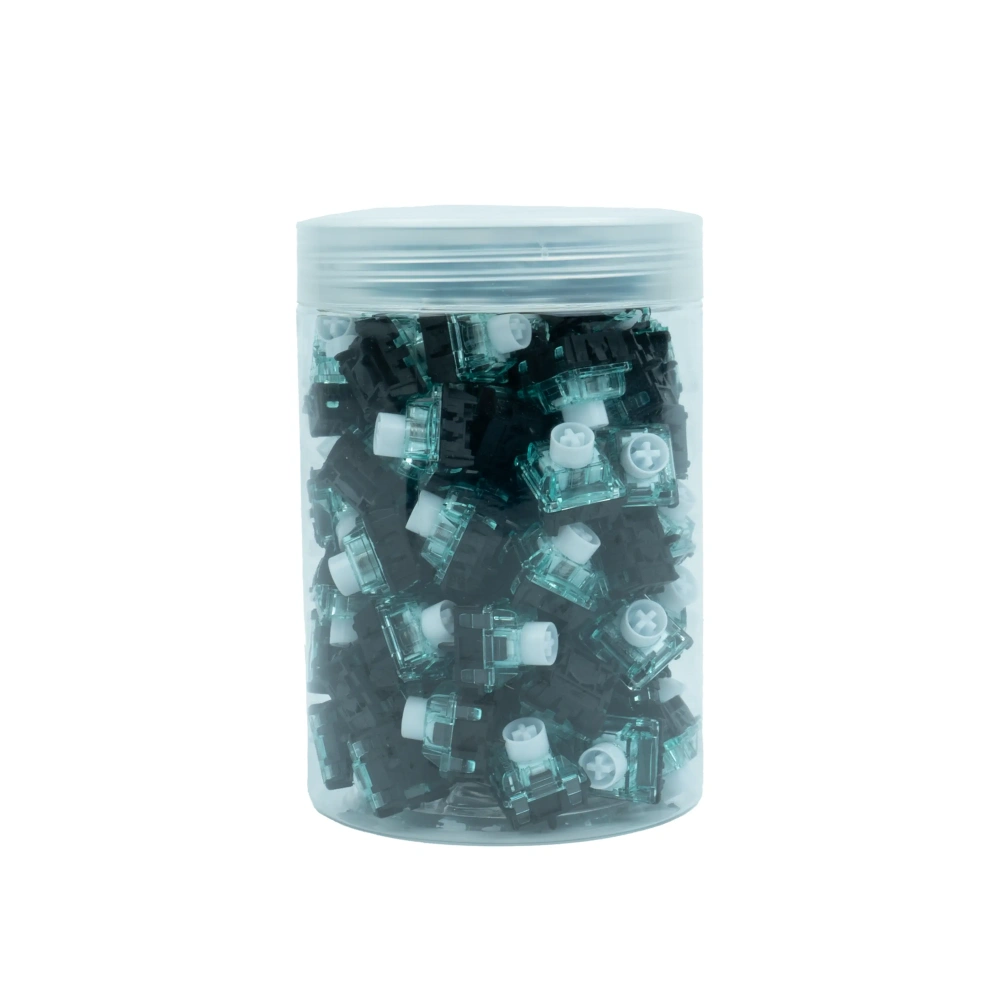

GATERON Magnetic Jade · Attraction HE Switch Set

  • Typing: Linear
  • Initial Force: 30±2gf
  • Bottom-out Force:30±2gf
  • Pre-Travel: Freely setting
  • Total Travel: 3.2±0.2mm
  • Spring: 18mm Customized Spring
  • Initial Magnetic Flux: 140±8GS (PCB1.2mm)
  • Bottom-out Magnetic Flux: 570±30GS (PCB1.2mm)
  • Pre-Lubed: Yes
5.0 (0 Reviews)
230 Sold
Limited Offer!
54 sold
$47.60 $59.50
-20%
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Pack Size:
    70 PCS
    90 PCS
    Please select the information you wantX
Qty:
-
+
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
1/1
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • GATERON Magnetic Jade Attraction HE Switch Set
  • Description
  • FAQ

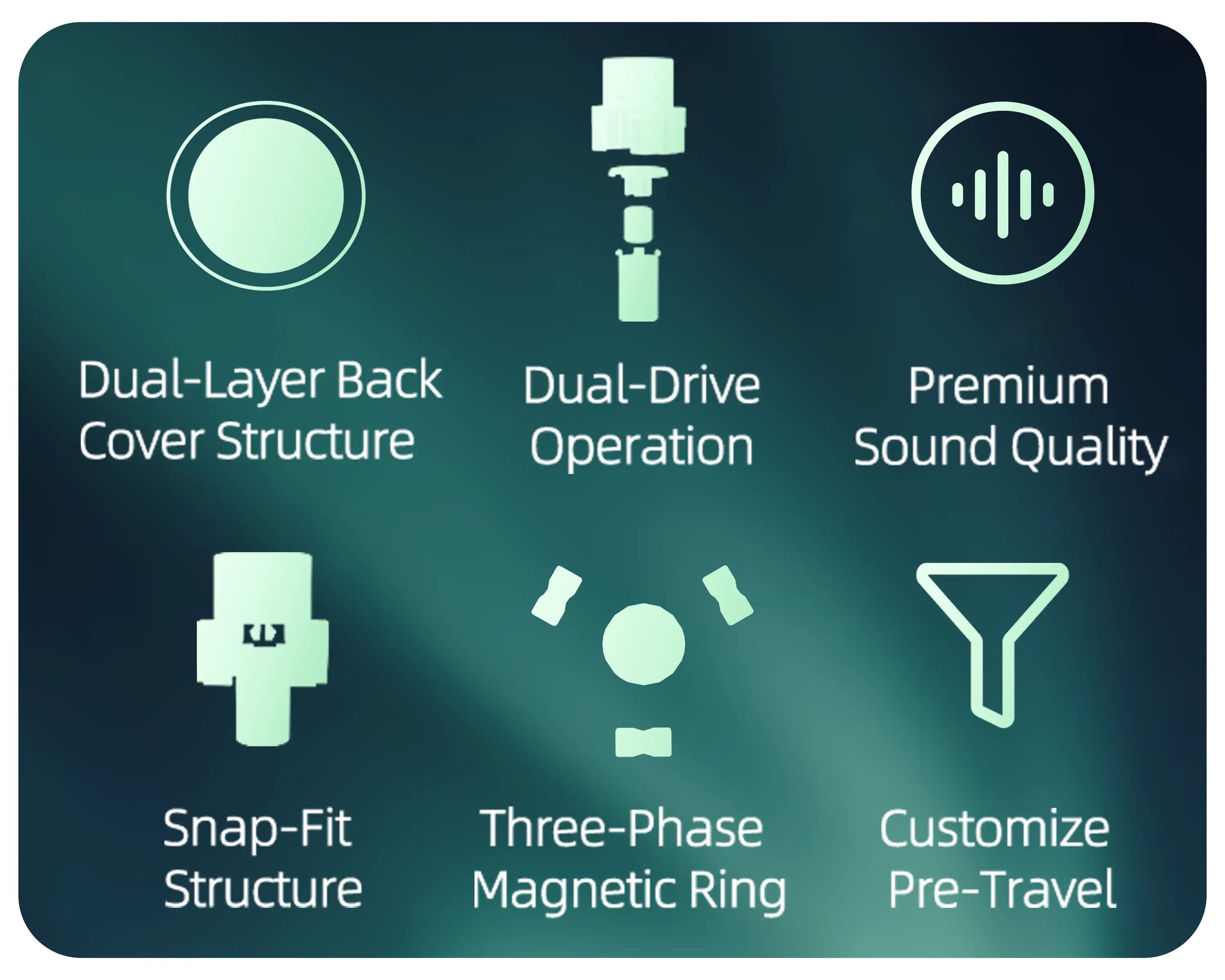

GATERON Magnetic Jade · Attraction HE Switch Features

GATERON Magnetic Jade · Attraction HE Switch: Always Light, Smooth to the End

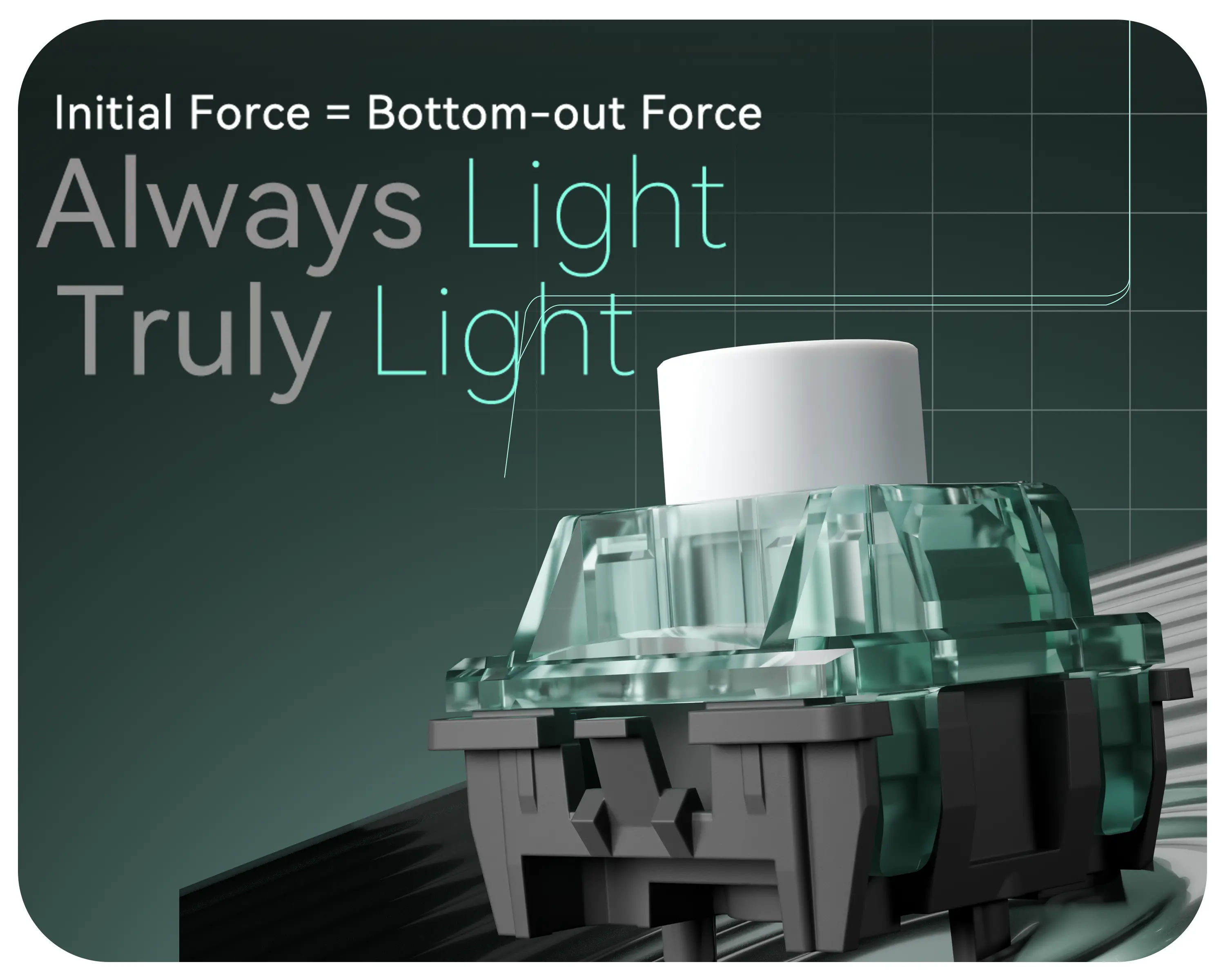

Redefine Typing Feel with Initial Force = Bottom-out Force


Core Typing Experience: Always Light, Truly Light

Experience a revolutionary linear switch where initial force equals bottom-out force for the first time. No more heavy mid-stroke resistance, no abrupt bottom-out impact—just consistent, feather-light actuation from the moment your finger touches the key to full depression. This game-changing magnetic design delivers a buttery-smooth typing feel that stays light through every keystroke, perfect for long coding sessions, fast typing, and competitive gaming.

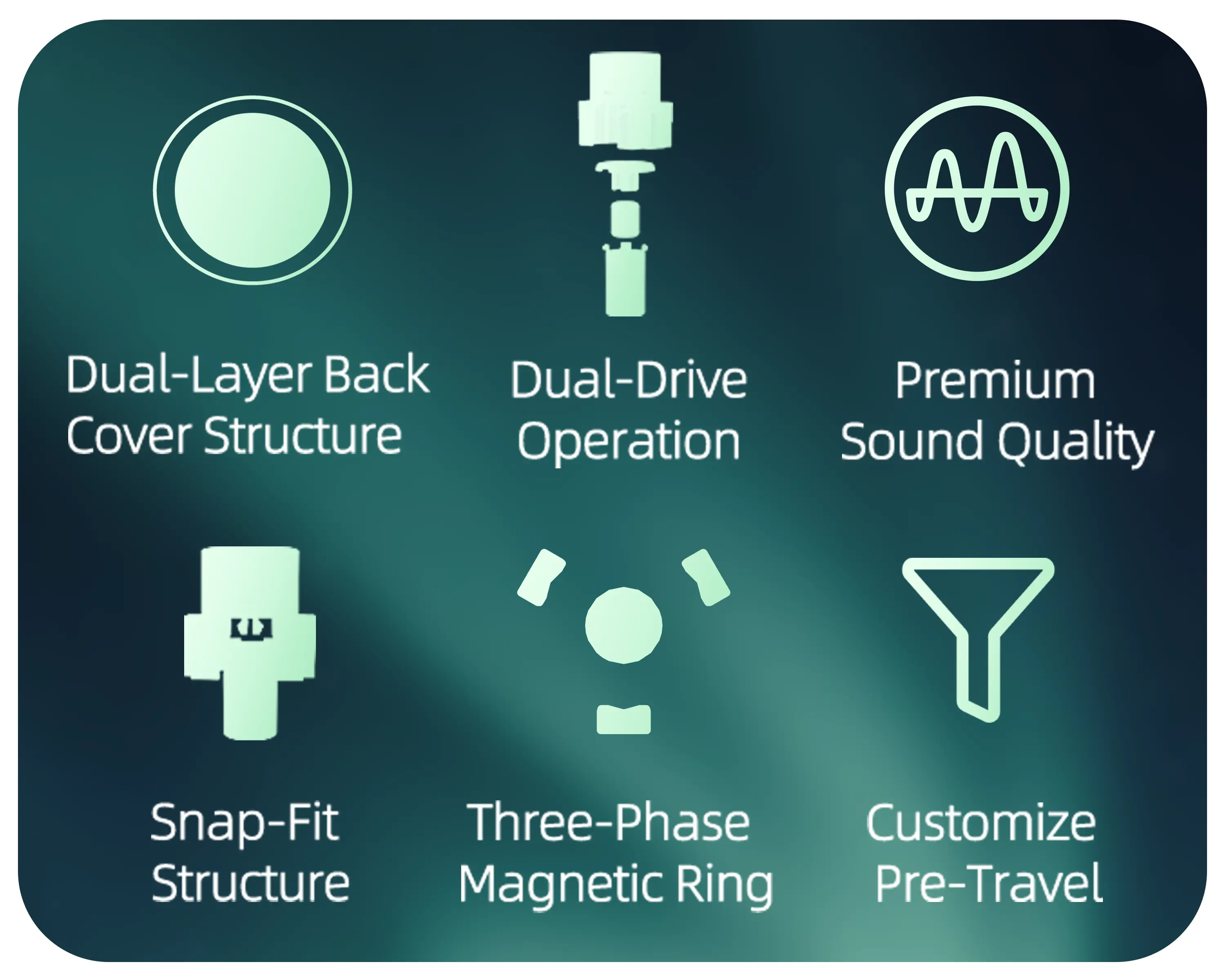

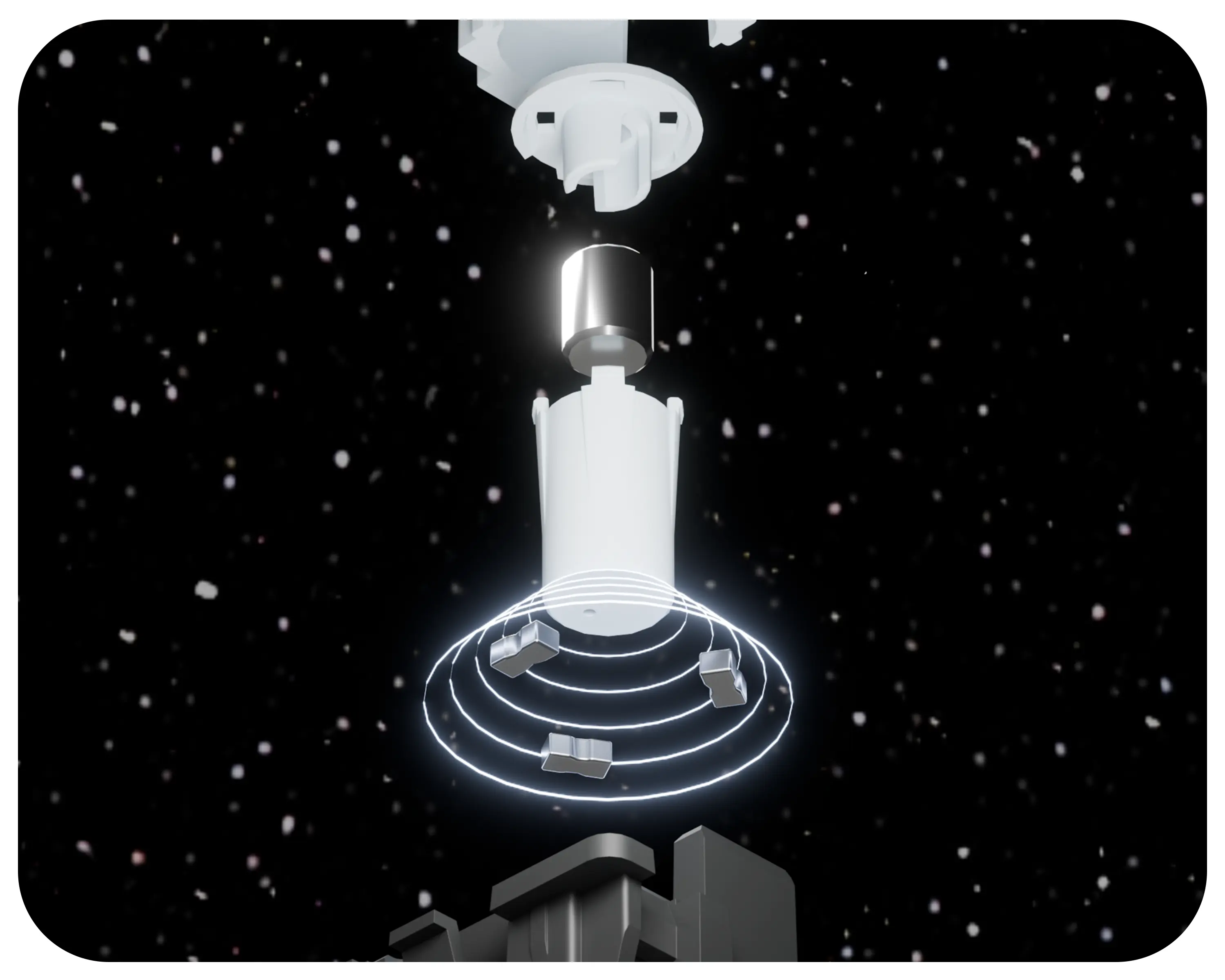

Three-Phase Magnetic Ring: Next-Gen Magnetic Technology
At the heart of the Jade Attraction HE Switch lies the Three-Phase Magnetic Ring, a technological breakthrough that redefines magnetic switch performance.
Adopts a unique "vertical + horizontal" magnetisation direction. Triangular symmetric layout. It constructs a more stable and powerful symmetric magnetic field. Magnetic force utilization far exceeds that of conventional solutions.
The force exerted by the three-phase magnetic ring precisely counteracts the spring's varying elastic force throughout its stroke. The fingertips feel an unprecedented smoothness, supported by magnetic force. Smooth user experience, vibration-free, Pure Typing Feel.

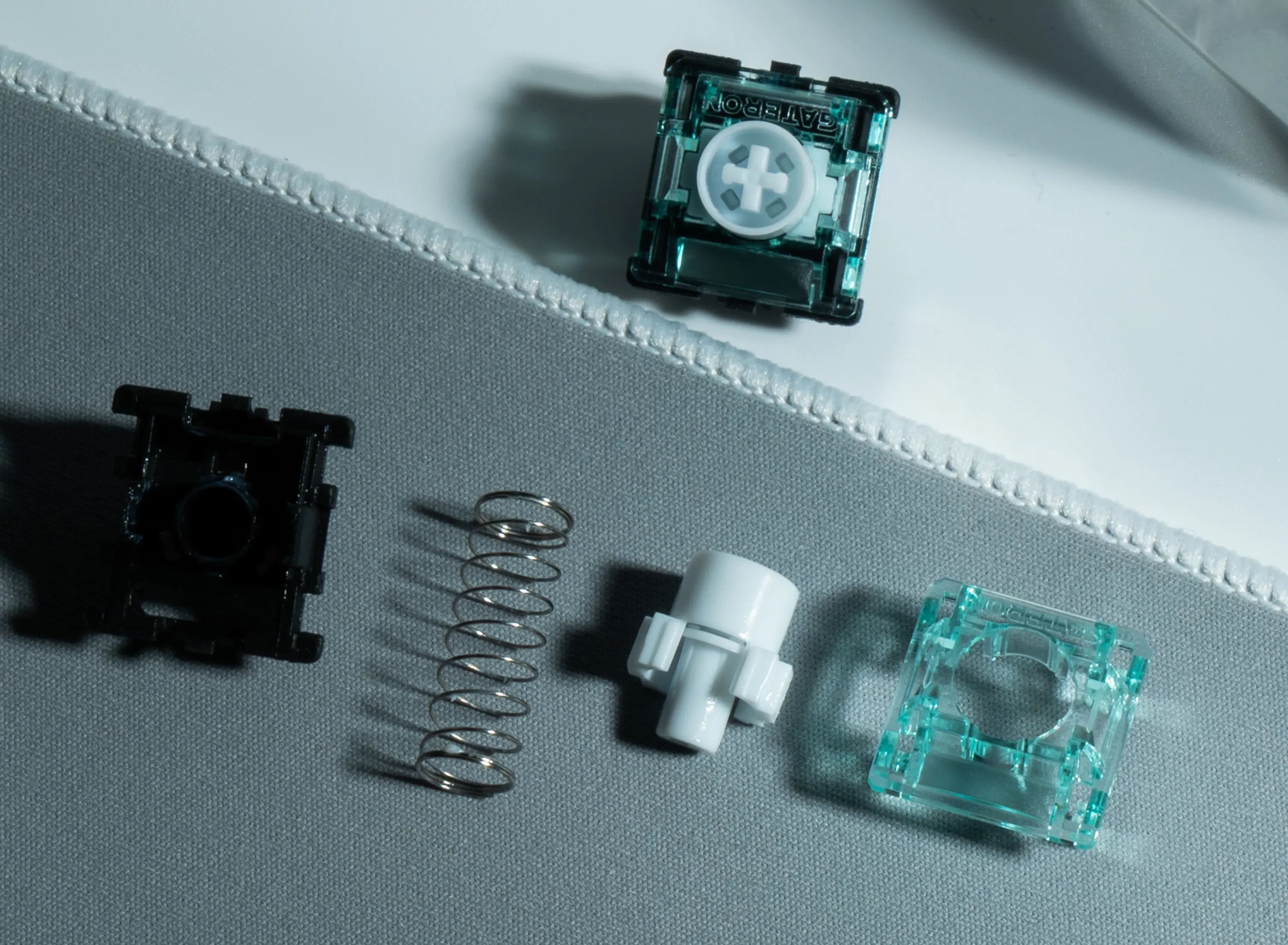

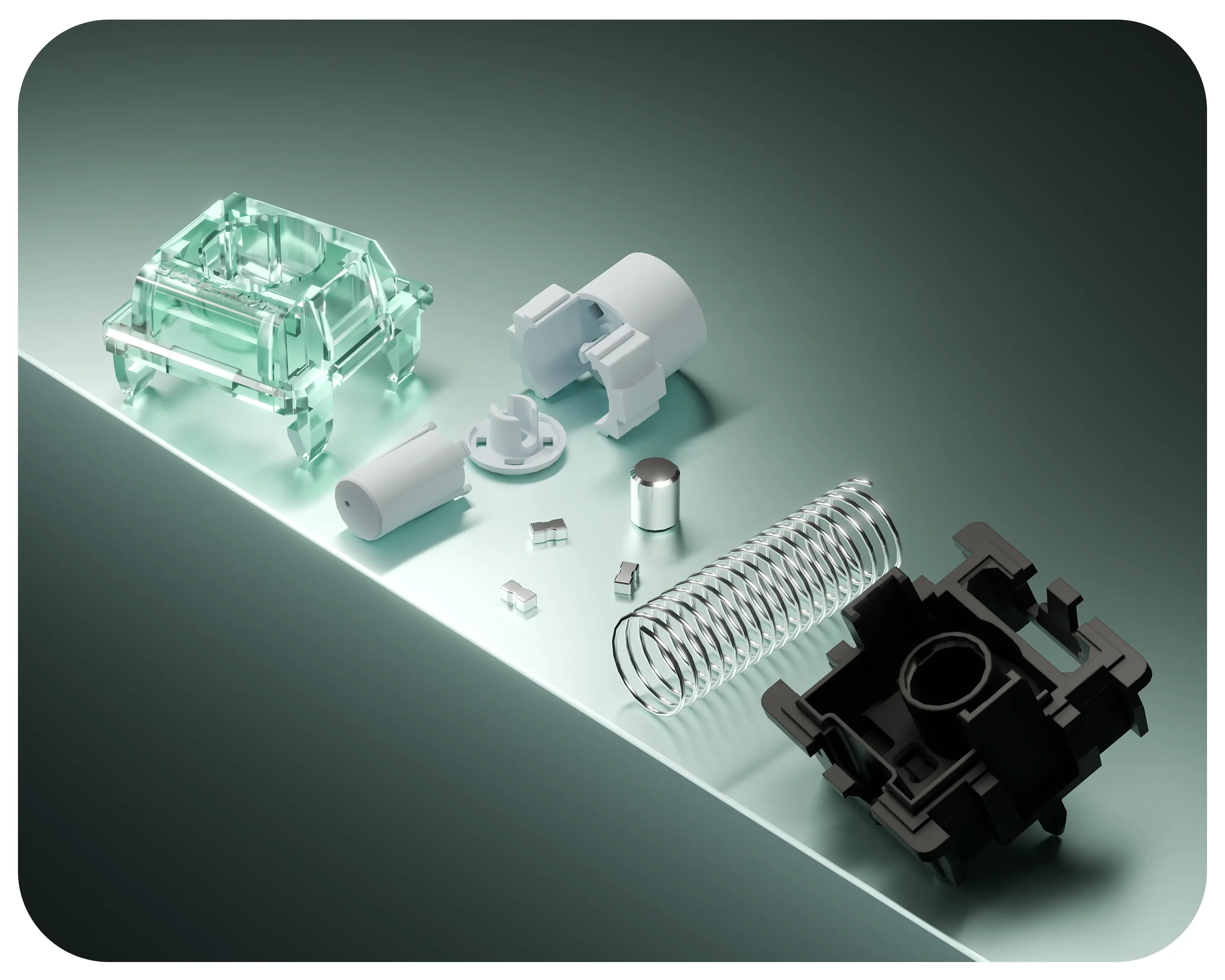

Dual-Drive  Modular Structure
The permanent magnet and stem are decoupled into dual segments, where the upper section governs the keystroke, and the lower section activates the trigger. Each Does Its Part, Steady to the End Stem & Magnet Chamber: Snap Connection Precise Engagement, Stable Trigger

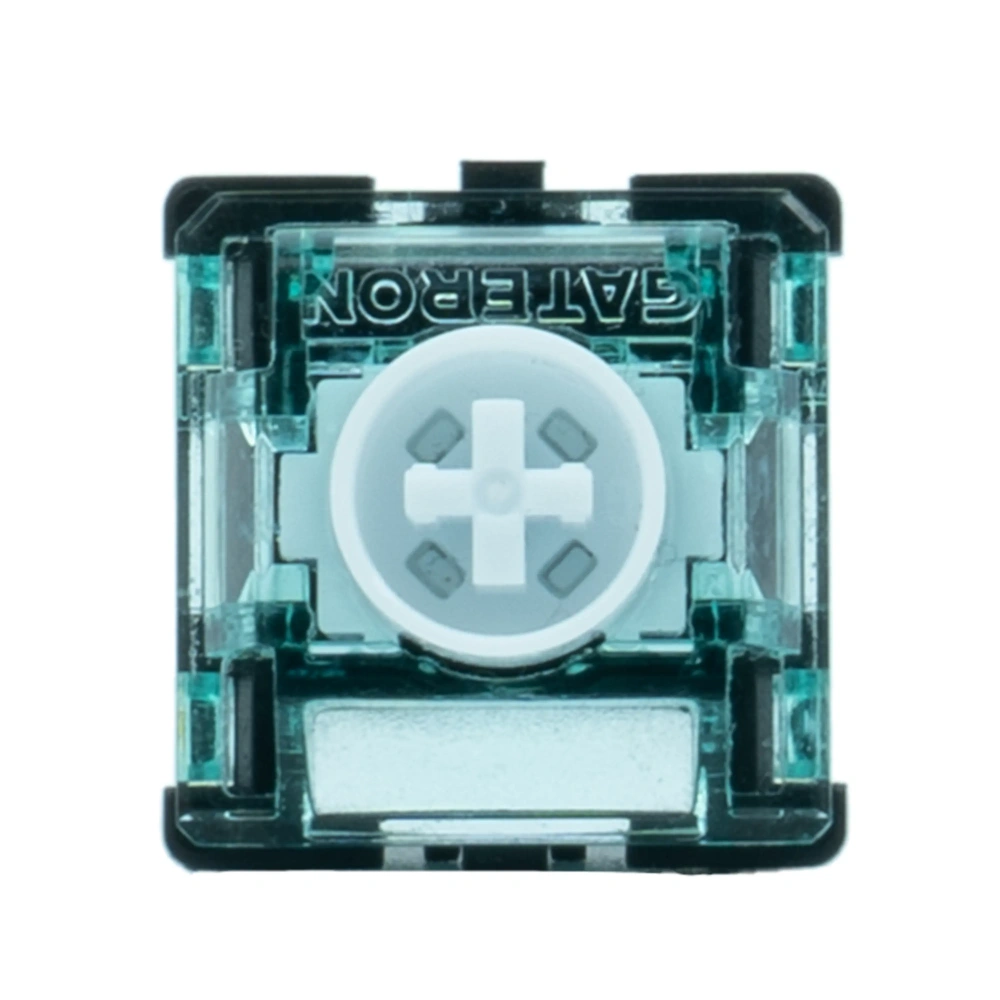

360° Full-Range Stability Zero Offset at Any Angle

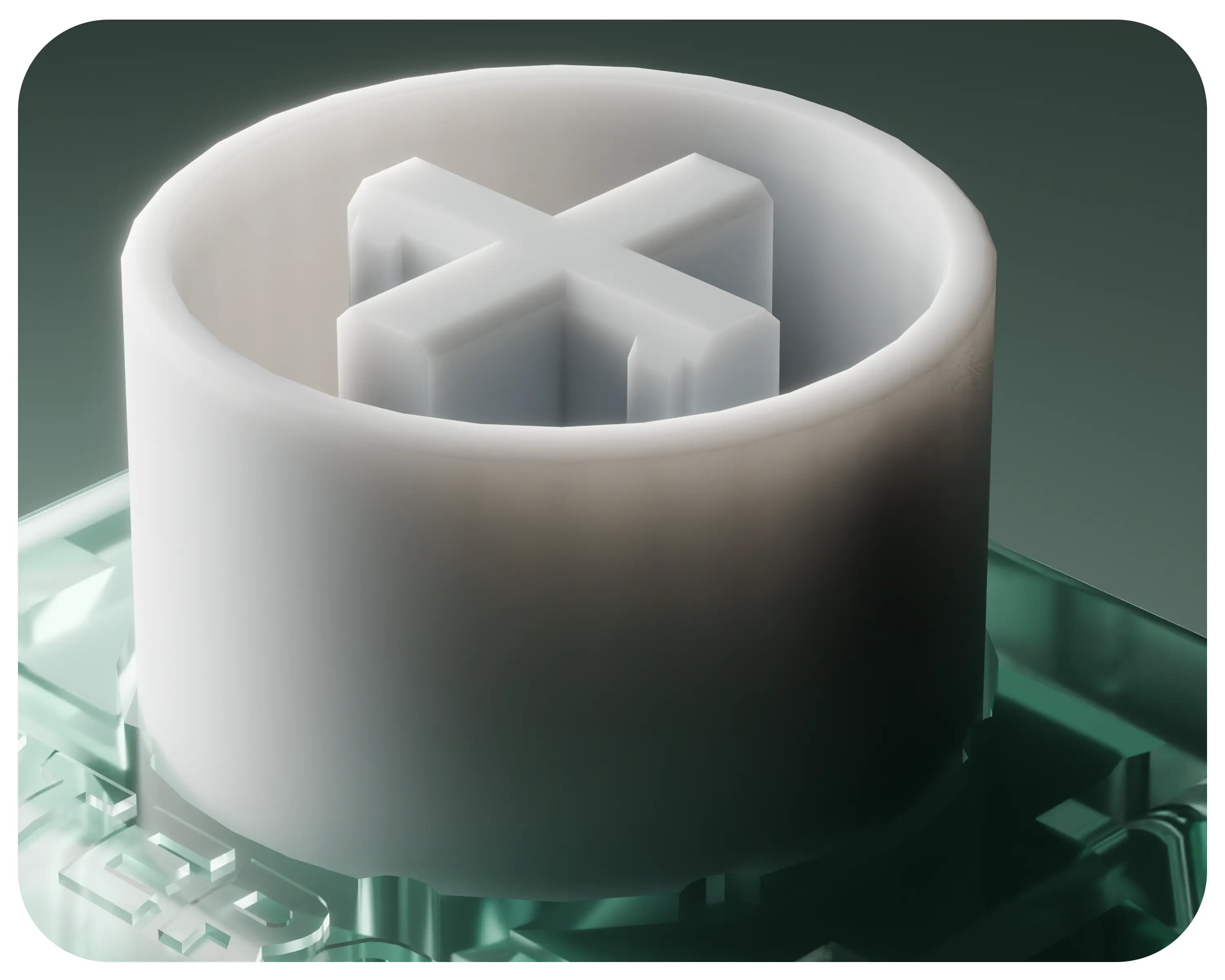

Say goodbye to stem wobble with our precision-engineered cylindrical stem design:
Cylindrical Stem Structure: Eliminates the inherent stem wobble of traditional cross-shaped stems, delivering rock-solid stability
Consistent Vertical Trajectory: The stem maintains a perfectly vertical path from actuation to bottom-out, with zero offset at any angle
360° Full-Range Support: Enjoy consistent, wobble-free typing whether you press the center, edge, or corner of the keycap

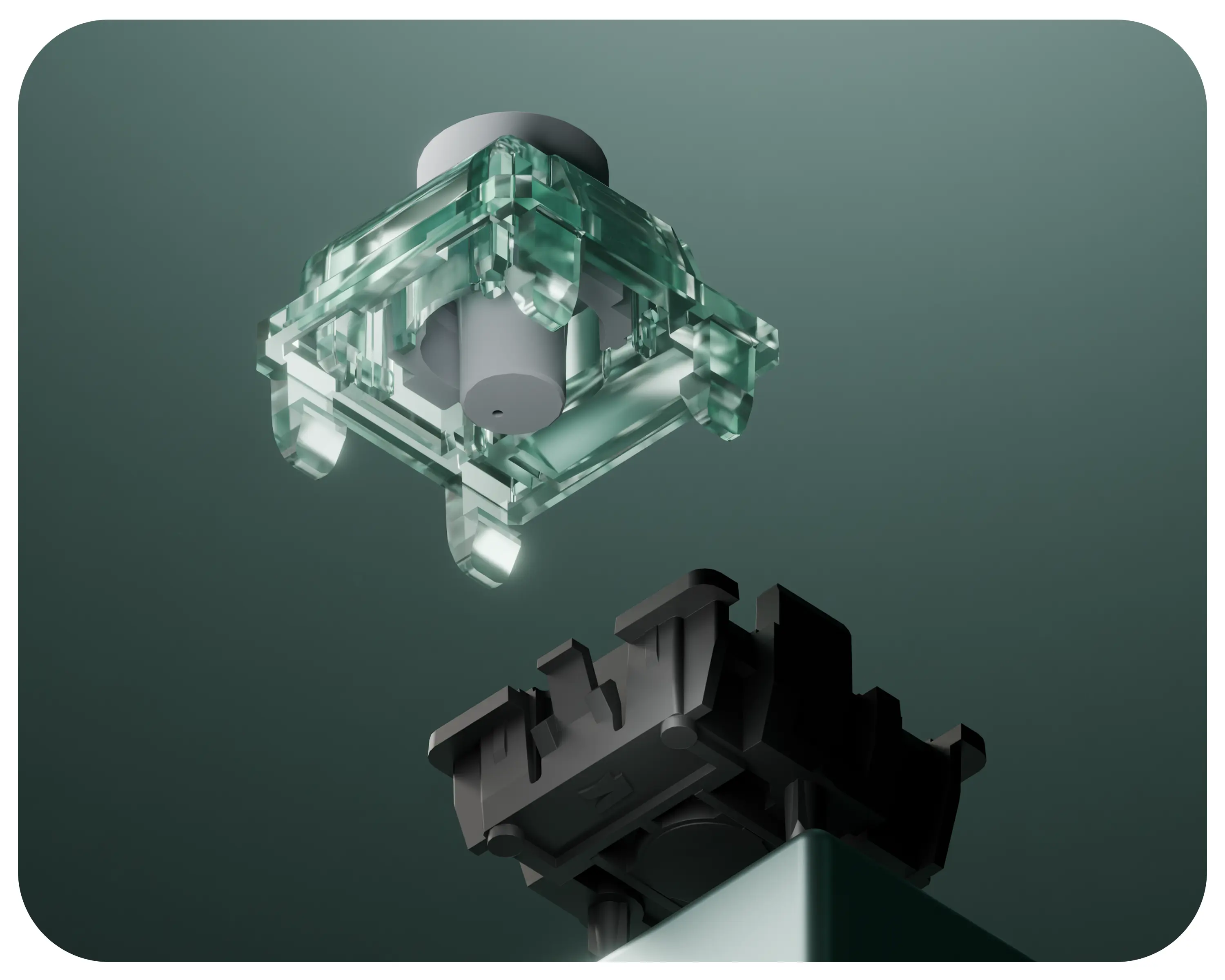

Acoustic Dual Back-Cover Design: Premium Mechanical Sound Profile

We didn't just perfect the feel—we engineered the sound to match. The Acoustic Dual Back-Cover design delivers a rich, premium mechanical typing sound:
Permanent Magnet Embedded Acoustic Chamber: The built-in acoustic chamber precisely reproduces the satisfying collision sound of traditional mechanical switches
Dual Back-Cover Structure: Enhances sound depth and clarity, creating a warm, thocky typing sound that's immersive and satisfying
Factory-Pre Lubed with Built-In Lubrication Channels: Pre-lubed at the factory with integrated lubrication channels to cut friction noise, ensuring a pure, consistent sound profile out of the box
Premium Immersive Feedback: Enjoy the best of both worlds—magnetic smoothness with the satisfying mechanical sound that keyboard enthusiasts love

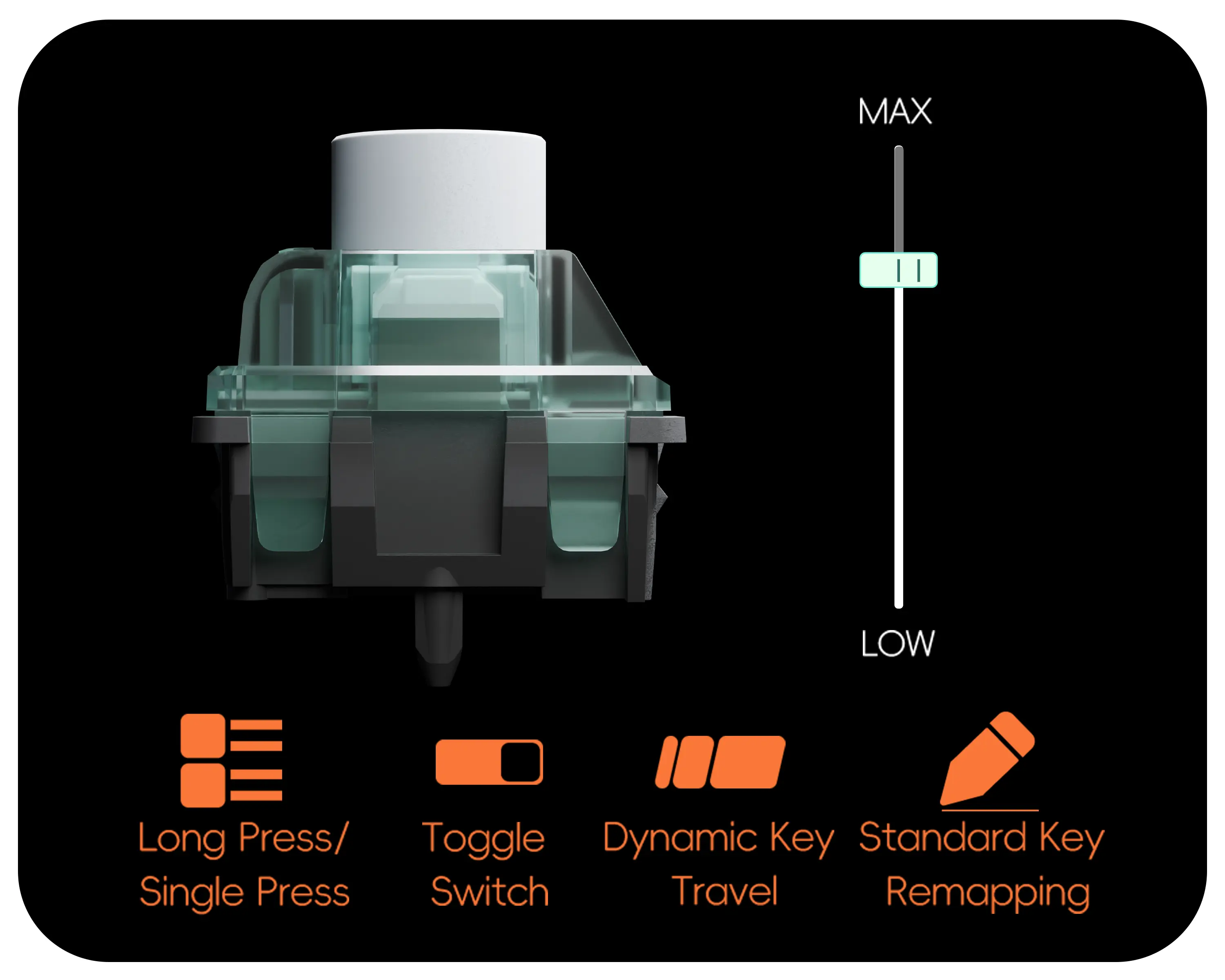

Customize Pre-Travel
Customize Pre-Travel via Keyboard Driver



GATERON Magnetic Jade Attraction HE Switch

Typing Linear
Initial Force 30±2gf
Bottom-out Force 30±2gf
Pre-Travel Freely setting
Total Travel 3.2±0.2mm
Initial Magnetic Flux 140±8GS (PCB1.2mm)
Bottom-out Magnetic Flux 570±30GS (PCB1.2mm)
Pre-Lubed Yes
