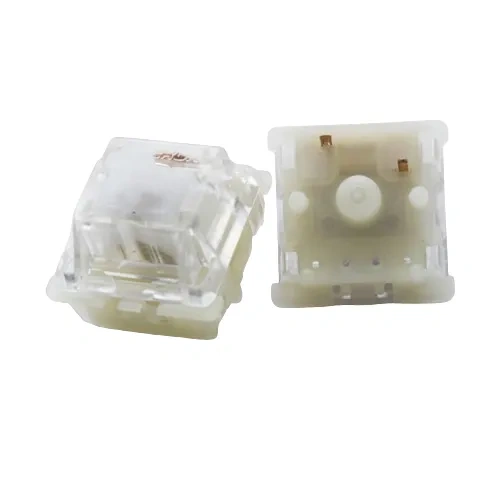

GATERON KS-9 Silent Switch Set

Name: GATERON KS-9 Silent Switch Set
Brand: GATERON Electronic Technology Co., Ltd.
SKU: Box
Price: 19 USD
Availability: InStock

SKU: Box

35pcs included in each pack

Stem: POM
Top Housing: PC, transparent
Bottom Housing:Nylon,Milky
Spring: Spring steel
Pins：5-Pin
LED Support：SMD or Plug In
Pre-lubed: No

0.0 (0 Reviews)

4 Sold

$19.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity

Add to Favorites (0)

Description

GATERON KS-9 Silent Switch Features

Photo	Stem	Operation	ForcePre Travel	Total Travel	Type

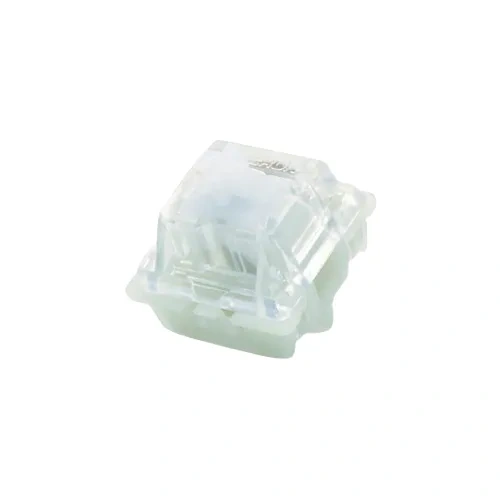

	White	38±15 gf	2.0±0.6 mm	4.0 max	Linear

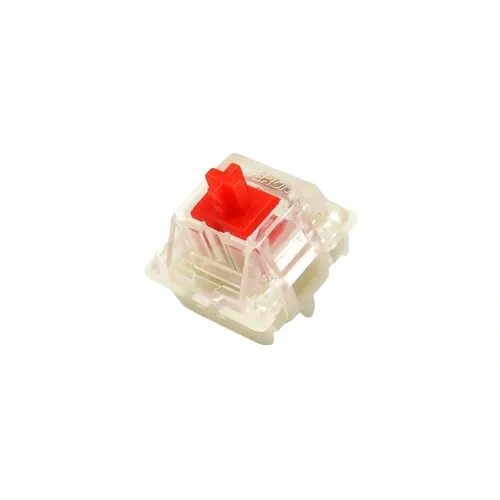

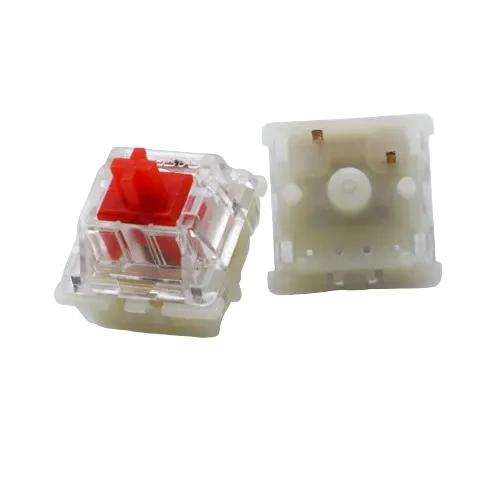

	Red	45±15 gf	2.0±0.6 mm	4.0 max	Linear

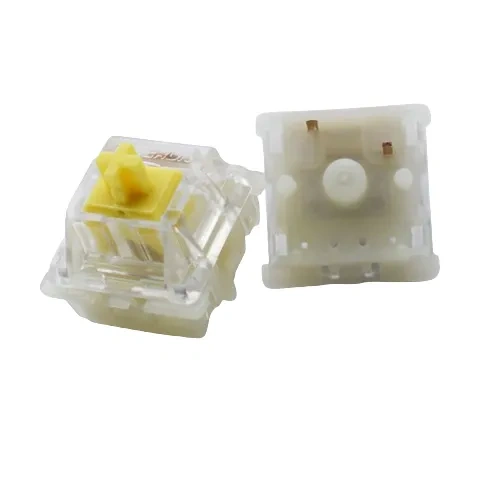

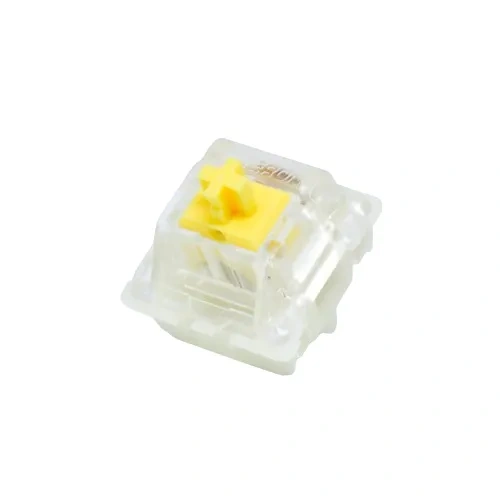

	Yellow	50±15 gf	2.0±0.6 mm	4.0 max	Linear

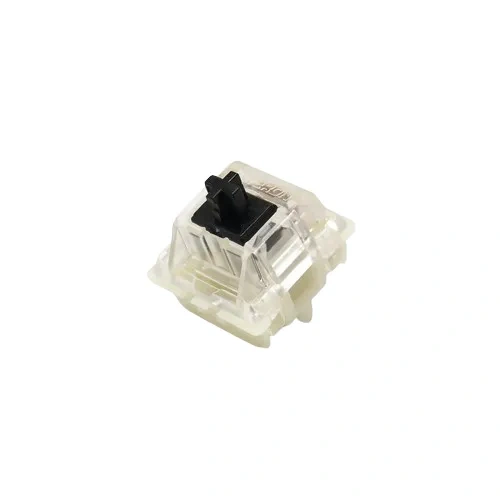

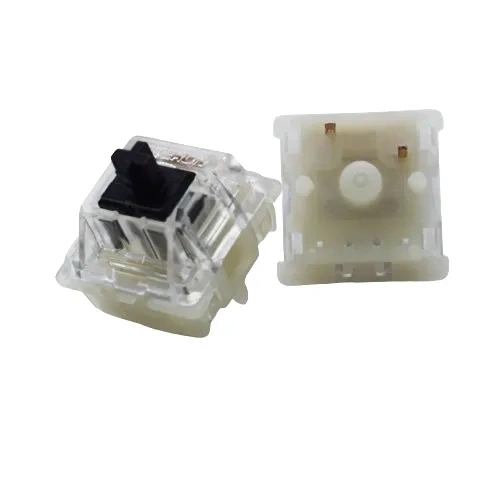

	Black	60±15 gf	2.0±0.6 mm	4.0 max	Linear

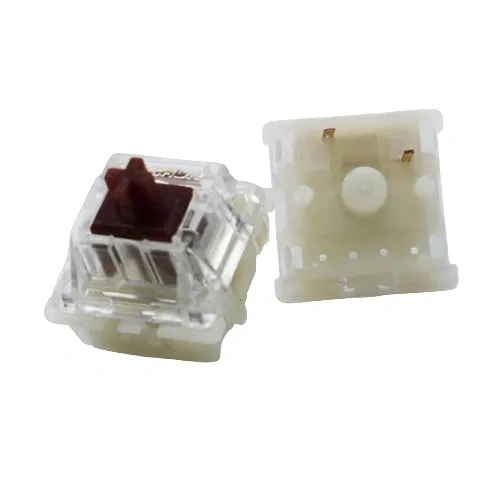

	Brown	55±15 gf	2.0±0.6 mm	4.0 max	Tactile

Silent pads are installed above and below the shaft core to achieve the mute effect.

Brand-new oxidation-resistant gold contacts are also adopted in the shaft body, which has better durability, improved oxidation resistance and vulcanization resistance, and further improved the service life of the shaft body.
