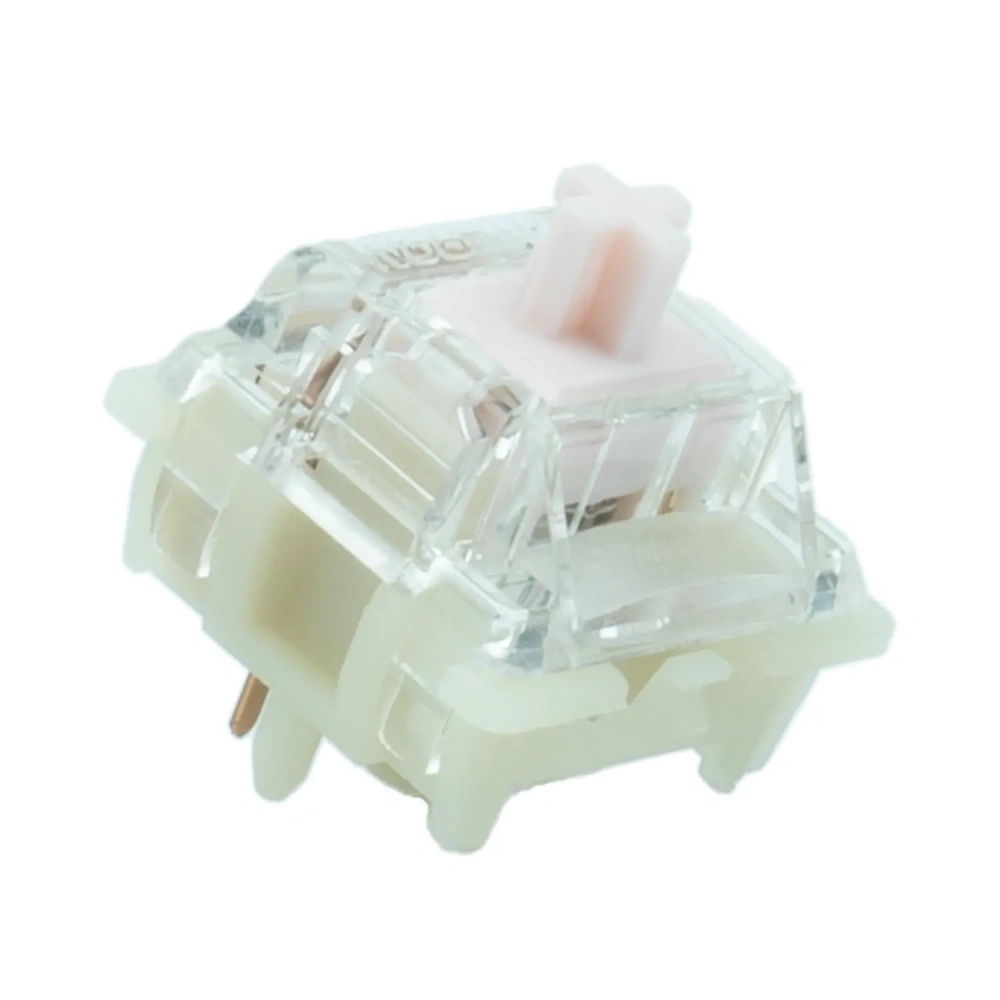

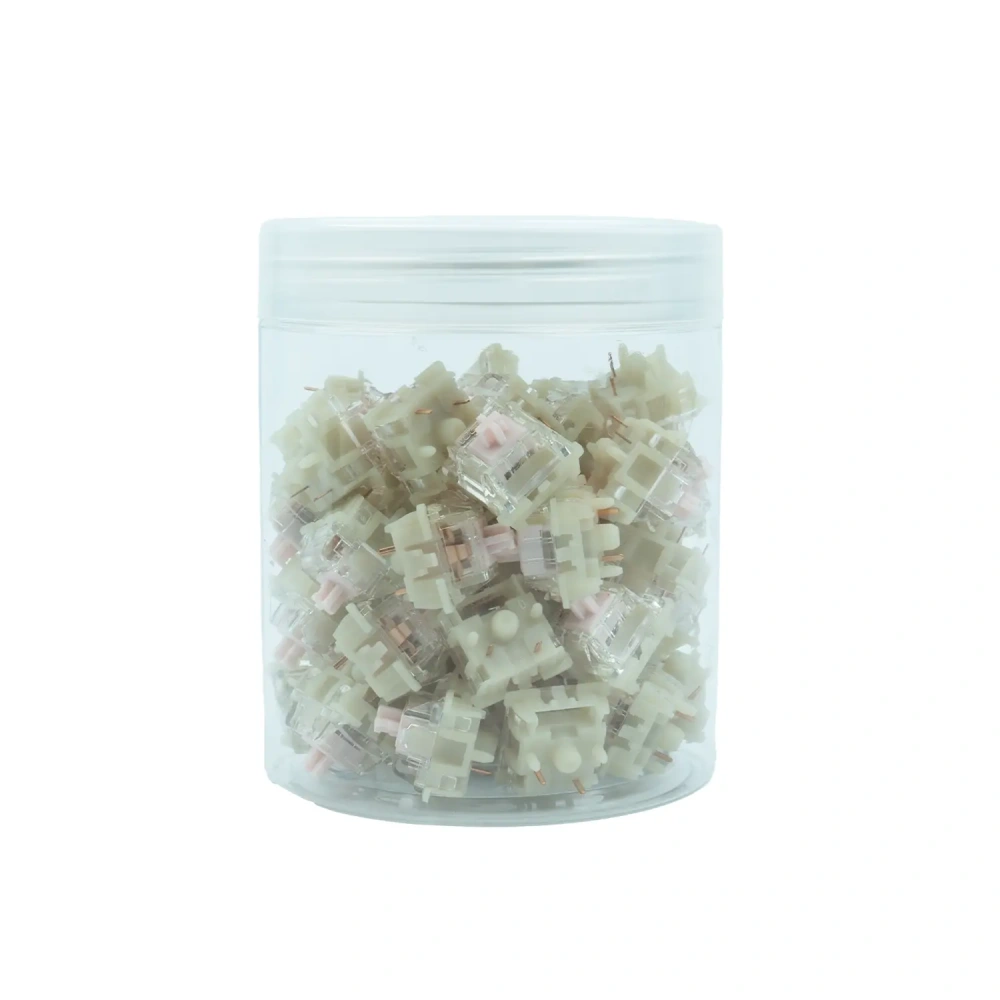

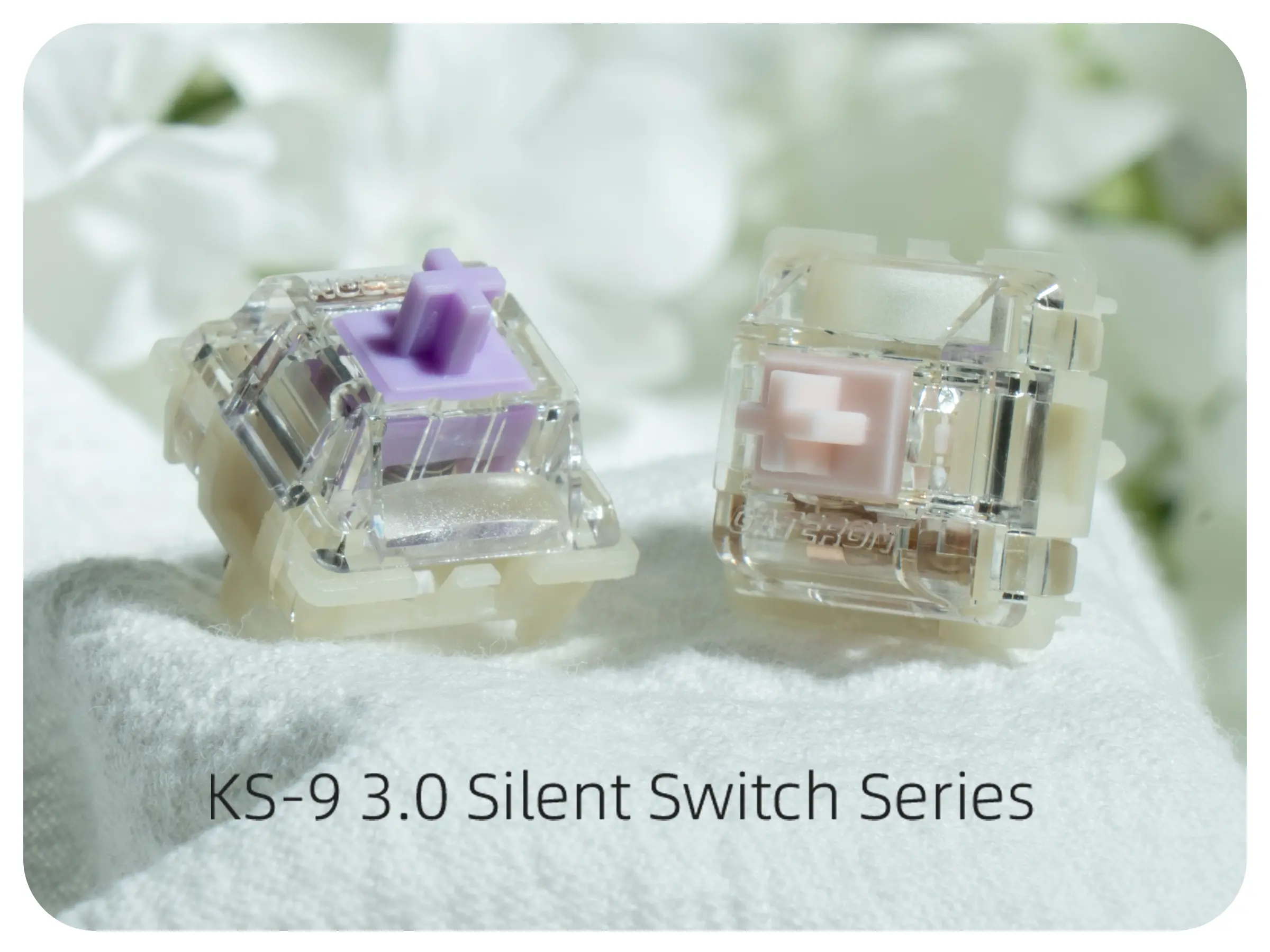

GATERON KS-9 Silent 3.0 Switch Set

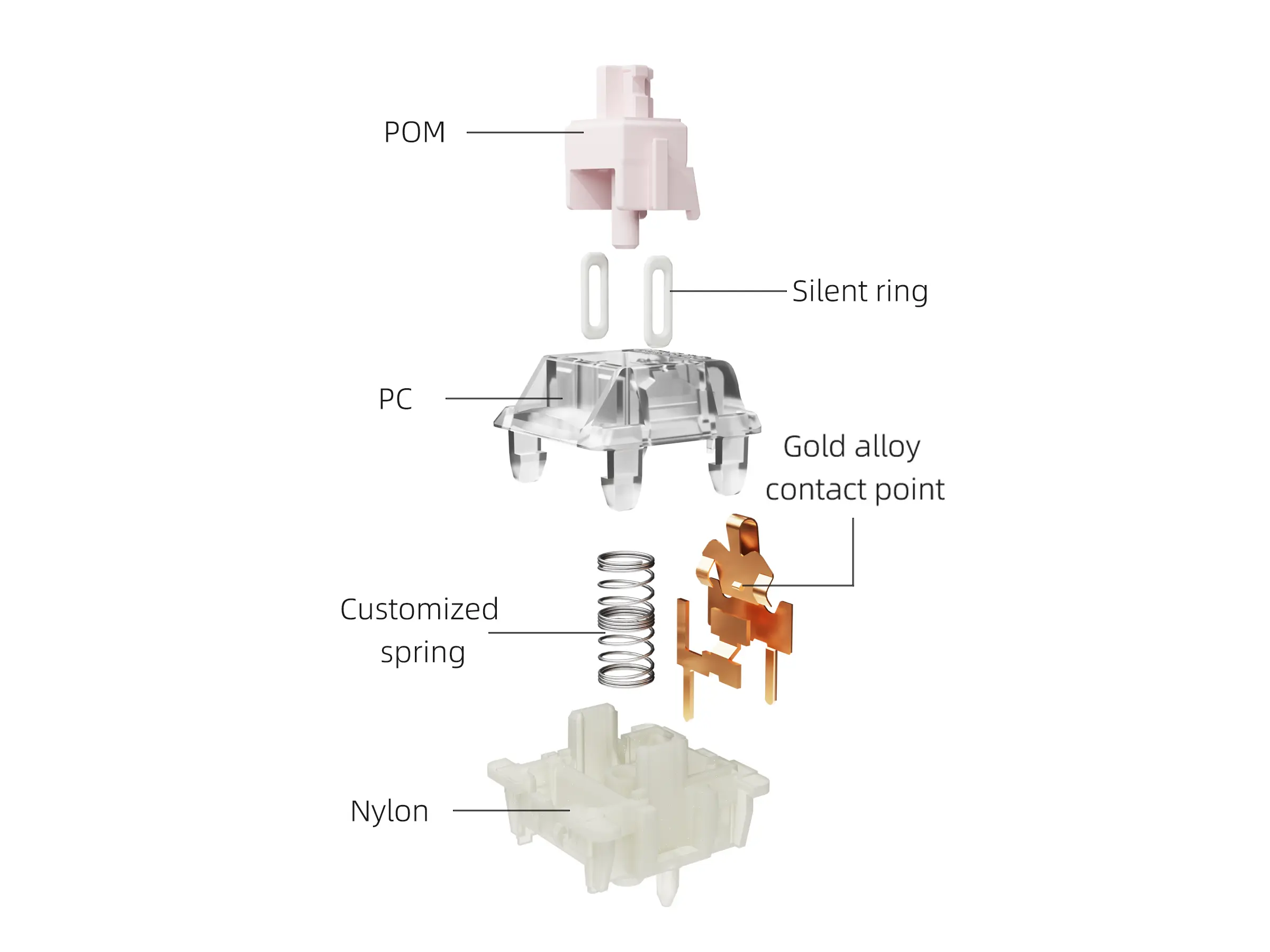

- Stem: POM
- Top Housing: PC, transparent
- Bottom Housing: Nylon, Milky
- Spring: Spring steel
- LED Support: SMD
- Pre-lubed: Yes
- Pins:5-Pin

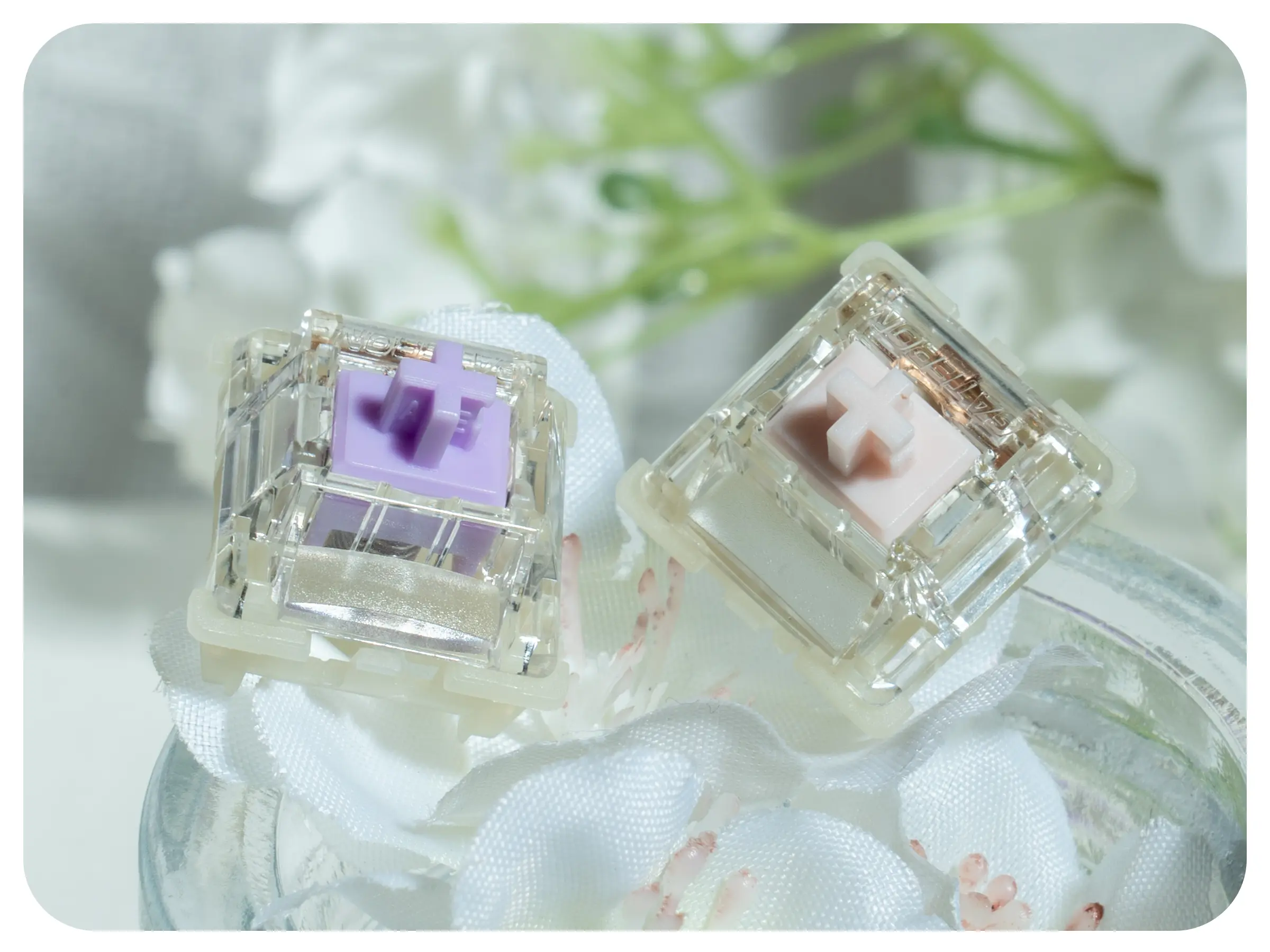

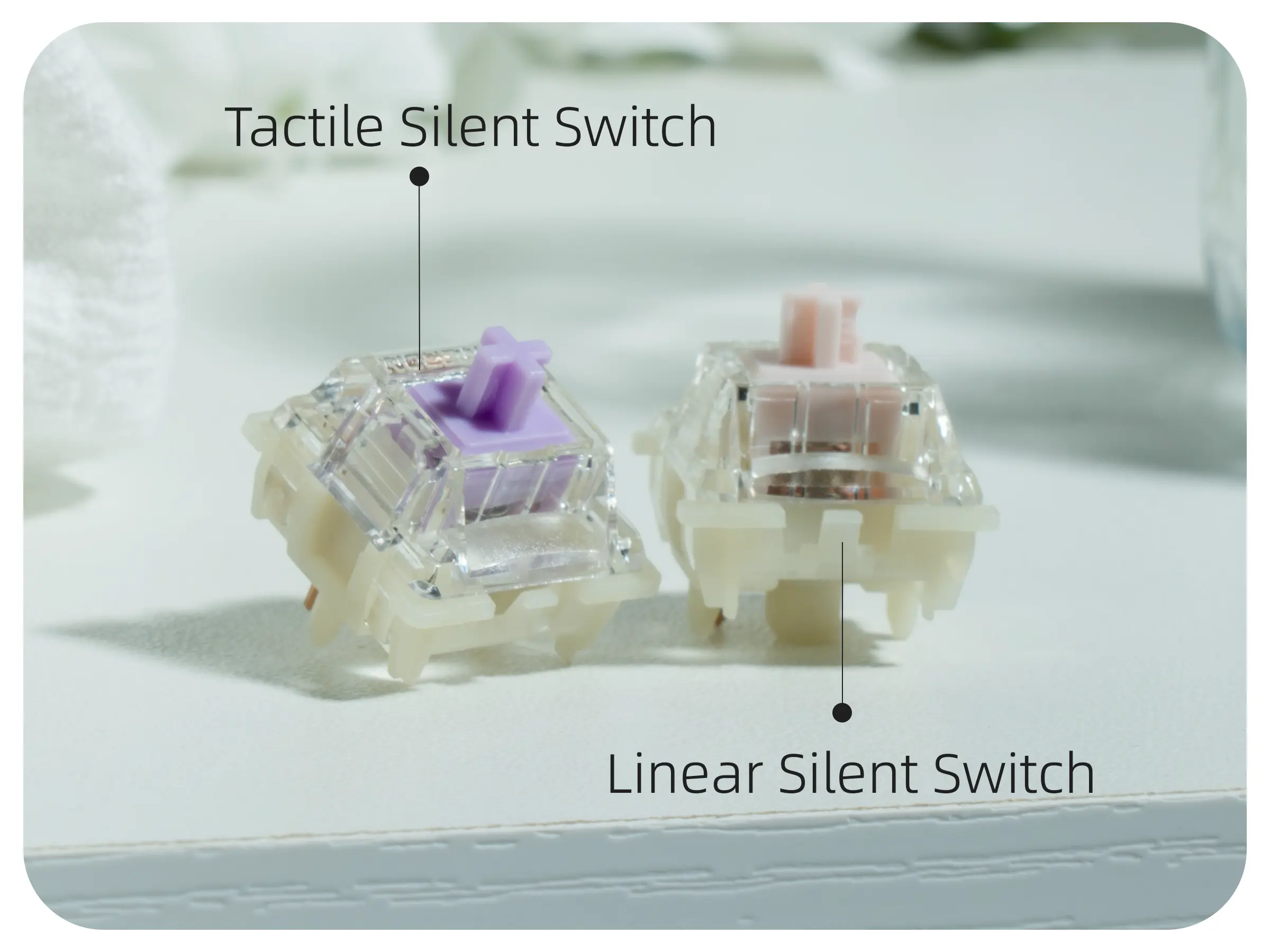

| Type | Operating Force | Pre-Travel | Total Travel | Spring | Pre-lubed | |
![]() |

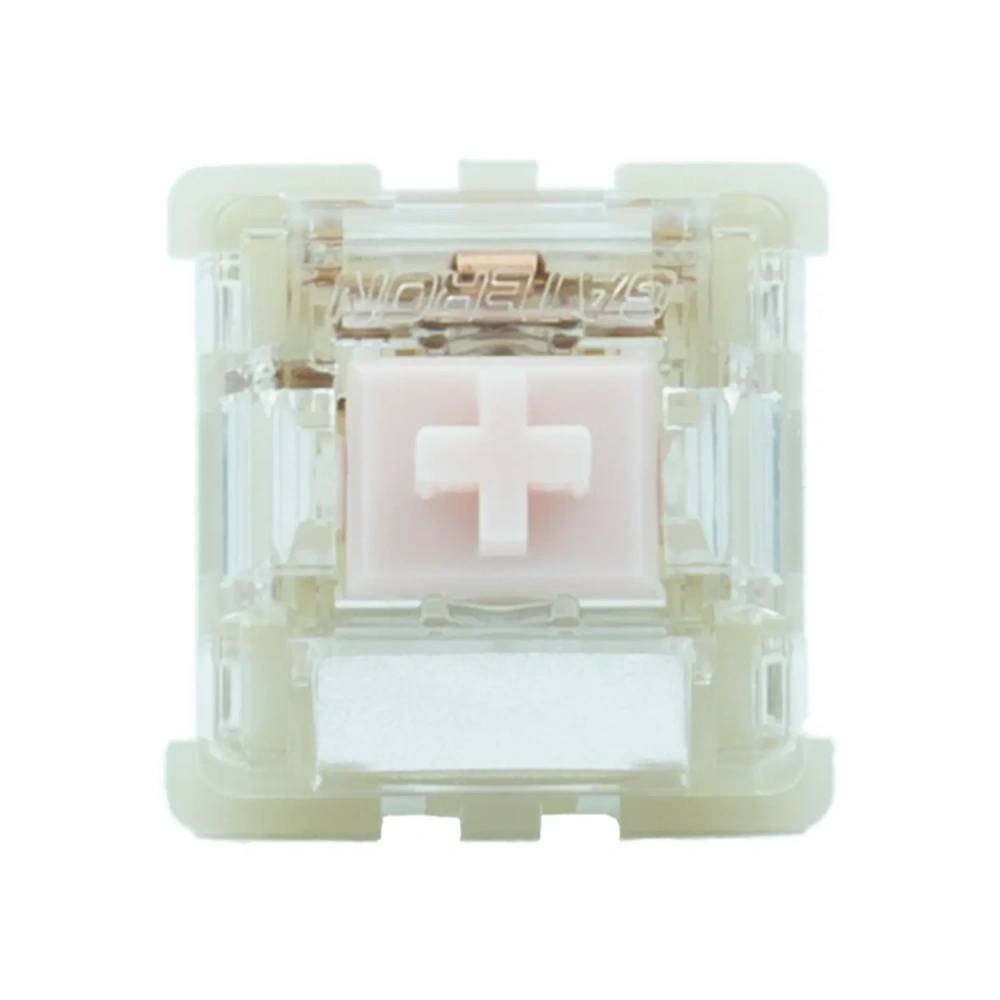

Linear Silent |
45±15gf |
2.0±0.6mm |
3.8mm Max |
Spring steel | Yes |
![]() |

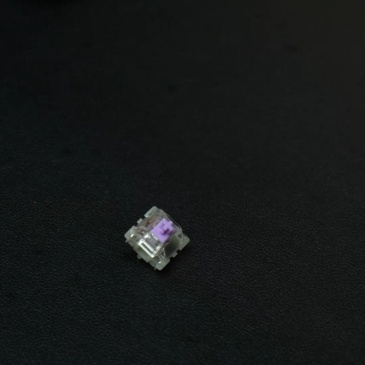

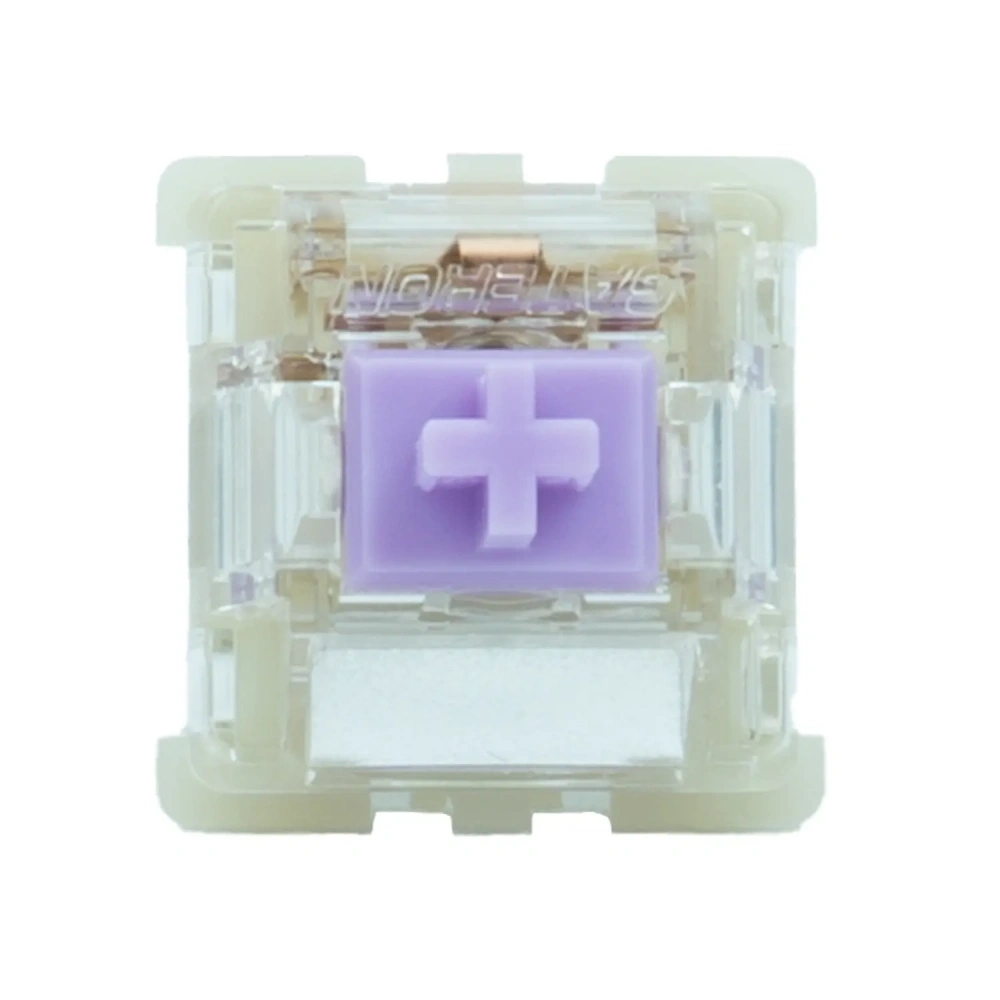

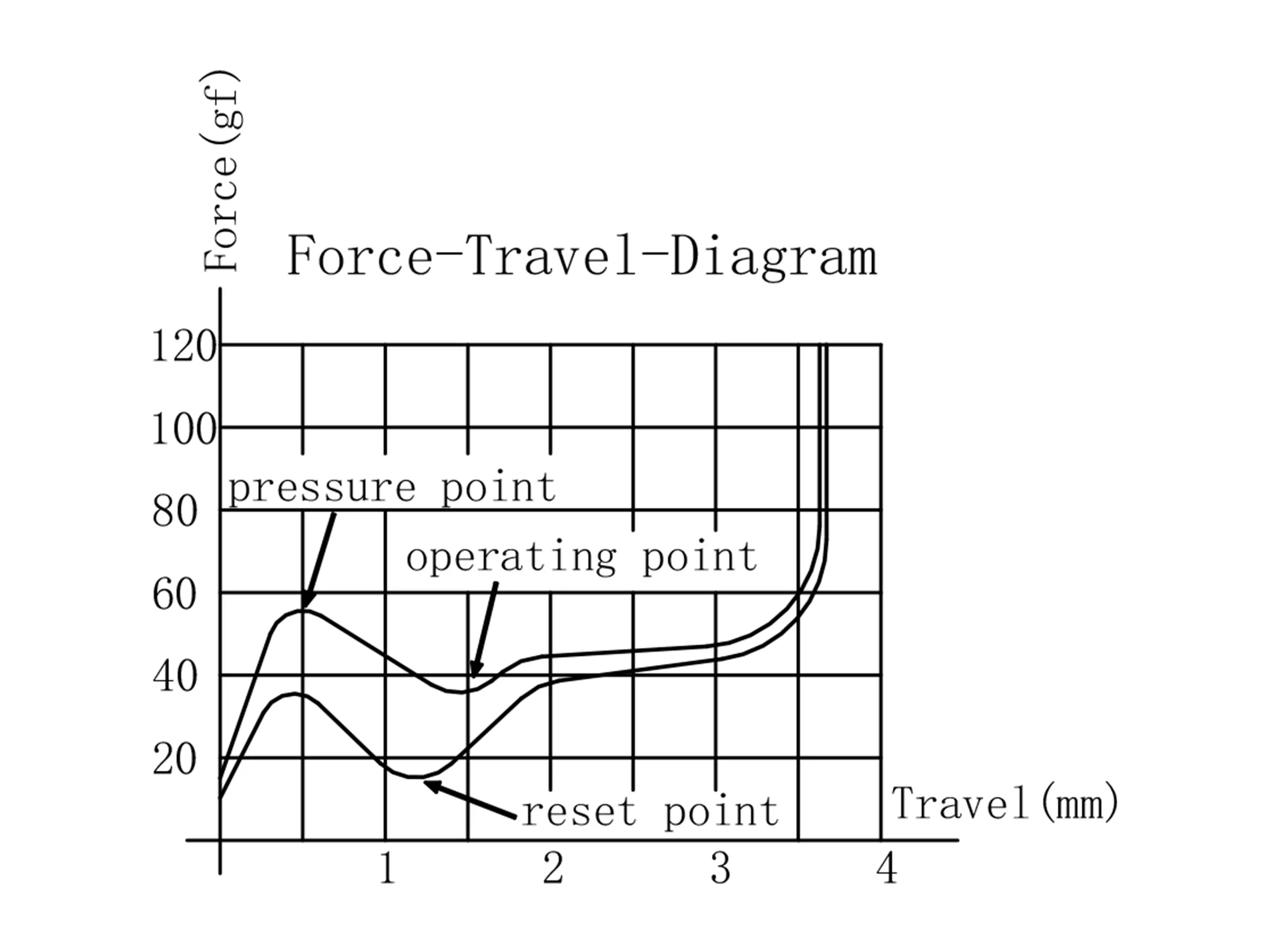

Tactile Silent |
55±15gf |
1.5±0.5mm |
3.8mm Max | Spring steel | Yes |
|

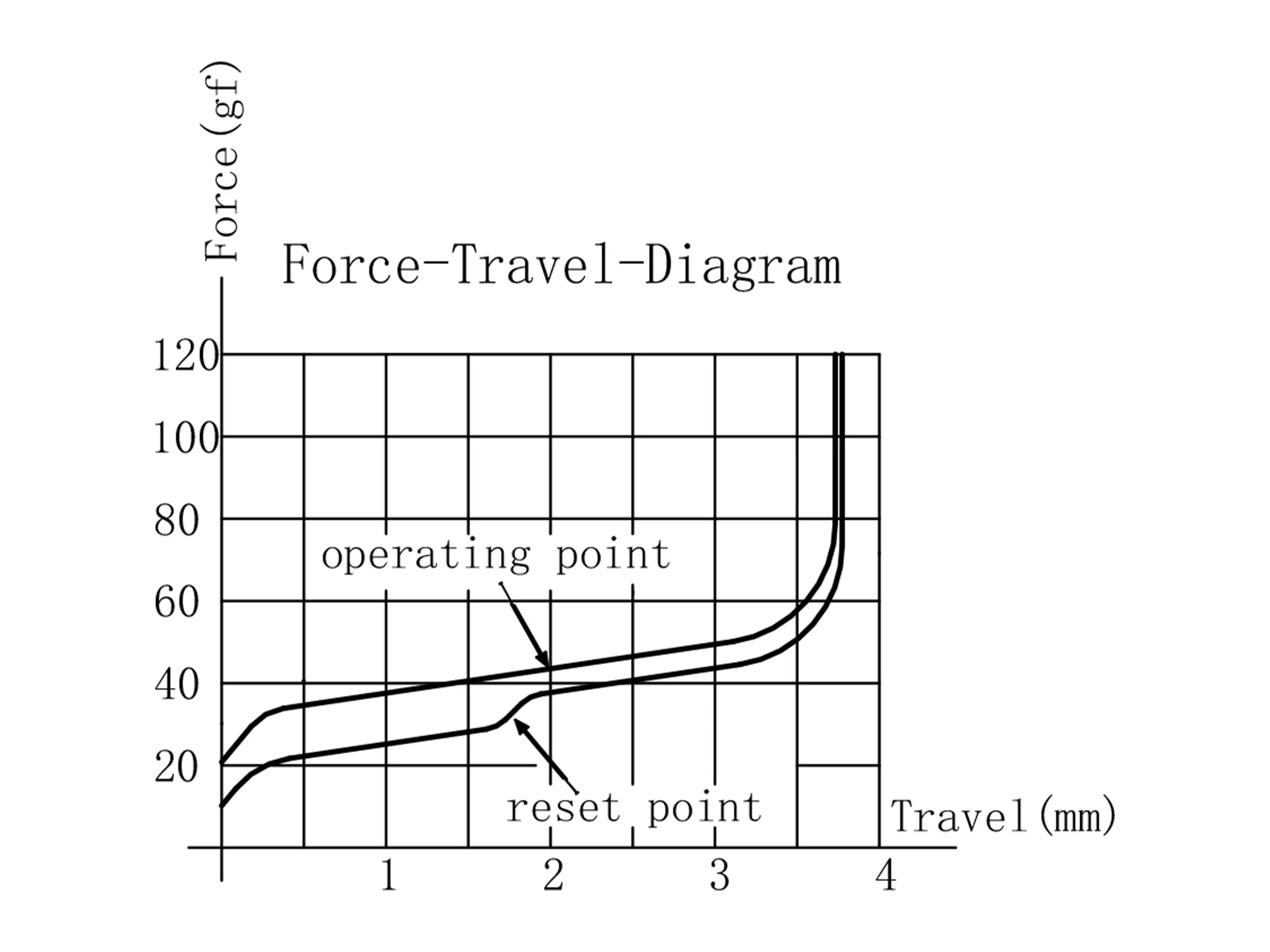

Dual-stage spring design delivers a more dynamic typing response, offering a light initial press followed by a stronger, more controlled actuation. This creates a balanced feel that enhances both speed and precision, giving users a more refined and responsive keyboard experience. |
![]() |
||||||||||||||
![]() |
In Silent Mode, it delivers a completely refreshed typing experience with reduced noise and smoother key feedback. The design combines linear and tactile characteristics while maintaining a quiet operation, allowing each keystroke to feel distinct yet unobtrusive. This balance enhances comfort, precision, and focus during long typing or gaming sessions. |
||||||||||||||
|
GATERON's Mature "Family-style" Factory Pre-Lubrication Technology Upgraded silent rings with damping spring rings embedded on both sides of the stem.Features a custom dual-stage spring for a snappy, responsive rebound |
![]() |
||||||||||||||
|
![]() |
||||||||||||||
|
![]() |
||||||||||||||
![]() |
![]() |
