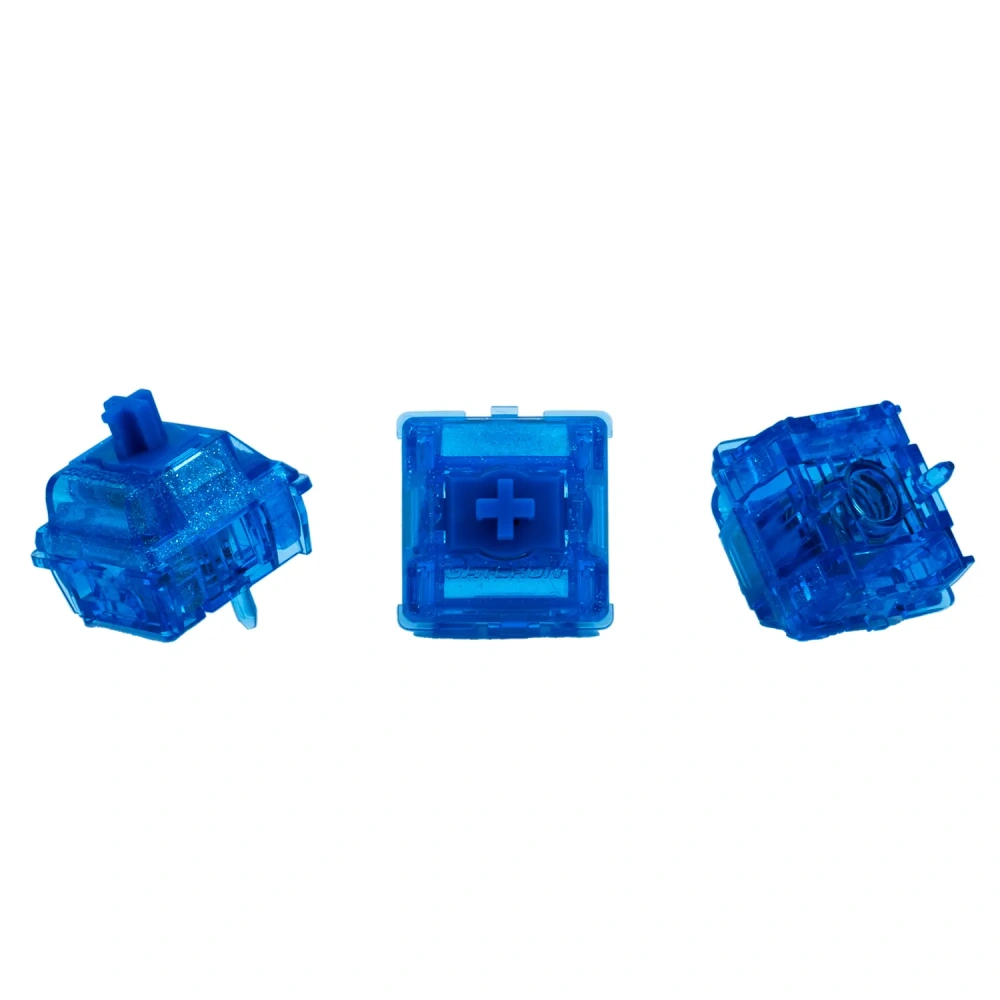

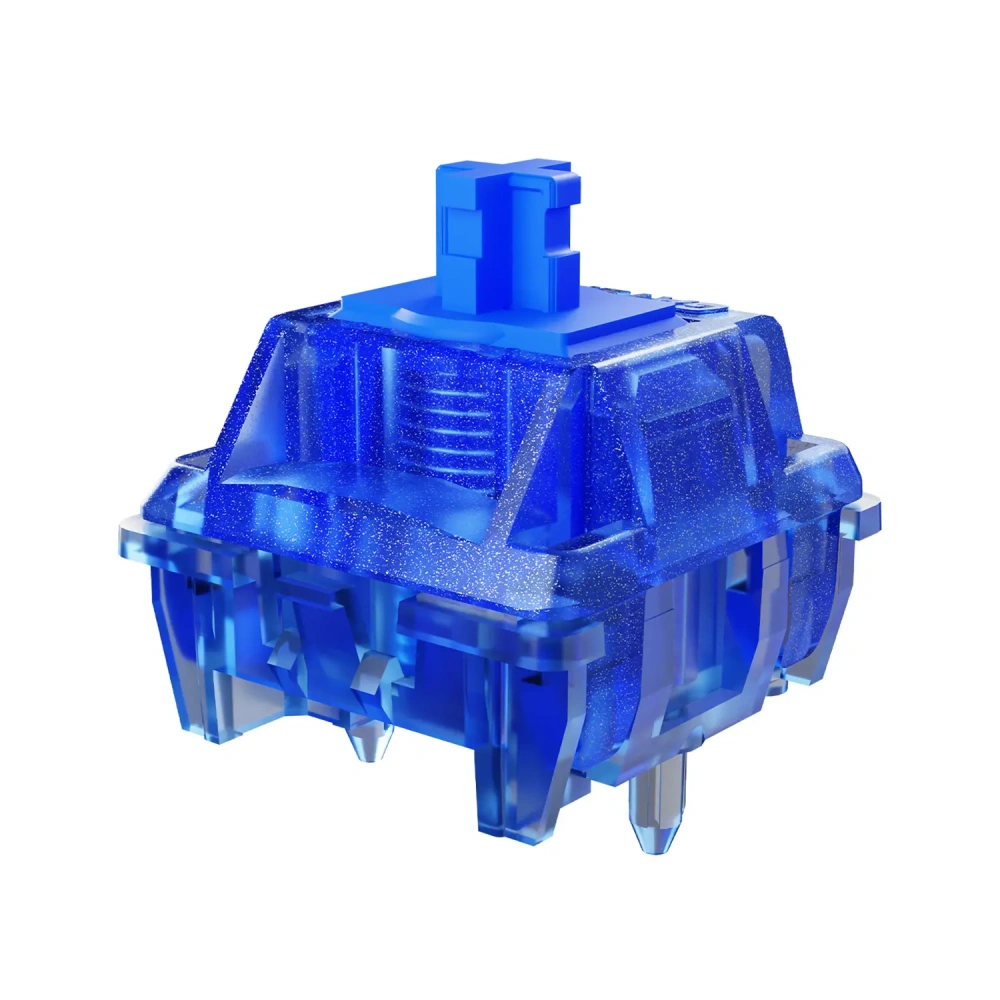

GATERON Magnetic Jade Sapphire HE Switch — with U-Rail Design

Typing Style: linear
Initial Force: 36+5gf
Total Travel:3.5±0.1mm
Initial Magnetic Flux: 120+8GS (PCB1.2mm)
Bottom-out Magnetic Flux: 700+30GS (PCB1.2mm)

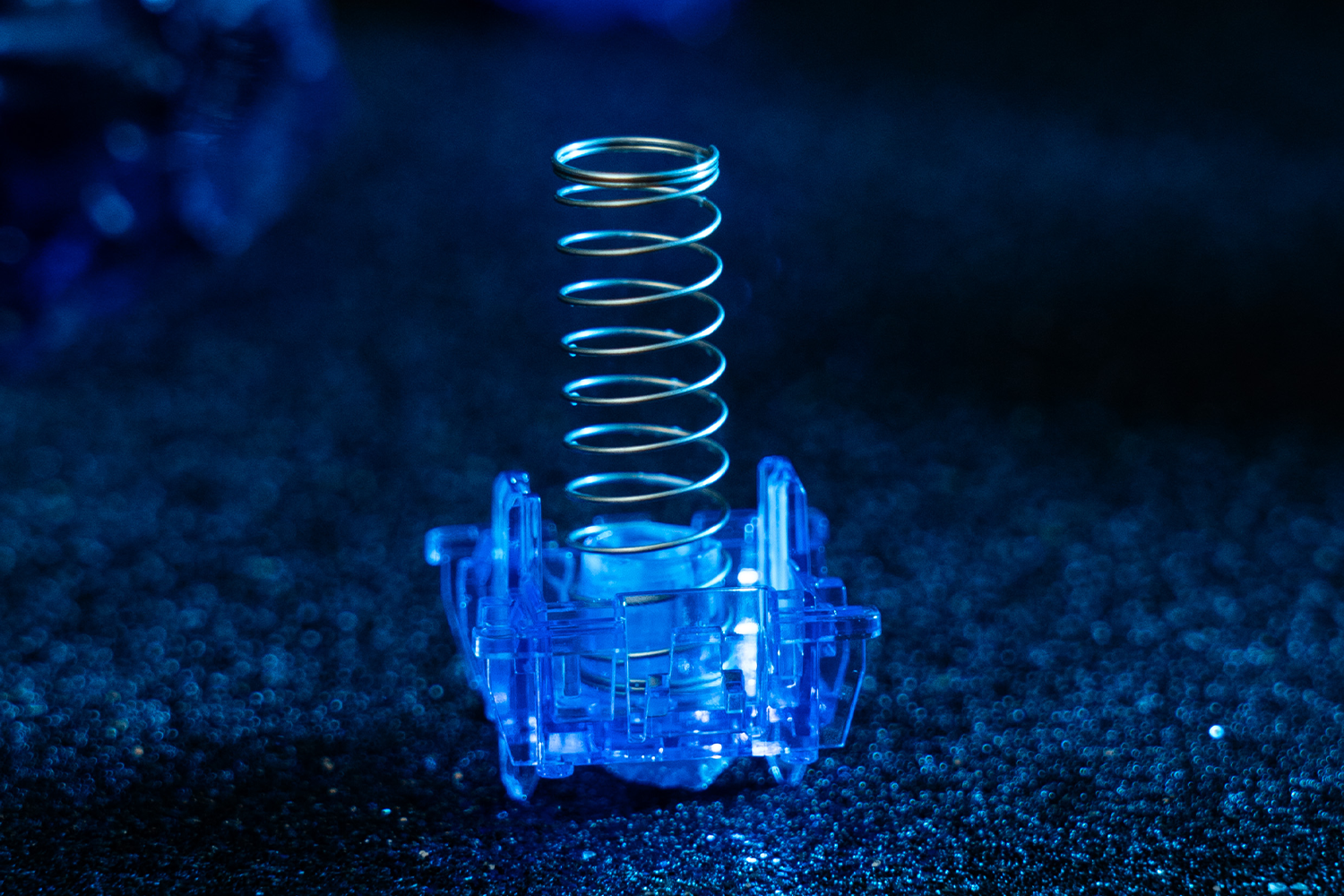

Spring: Custom Spring
Pre-Travel: Freely setting
Pre-Lubed: Yes
Lifetime: Over 150 million keystrokes

5.0 （0 Reviews）

69 Sold

$59.50

Received successfully

Coupon Code

GATERON Magnetic Jade Sapphire HE Switch Features

Tip: The magnetic switch is designed for magnetic keyboards(Hall effect keyboards), not for mechanical keyboards.

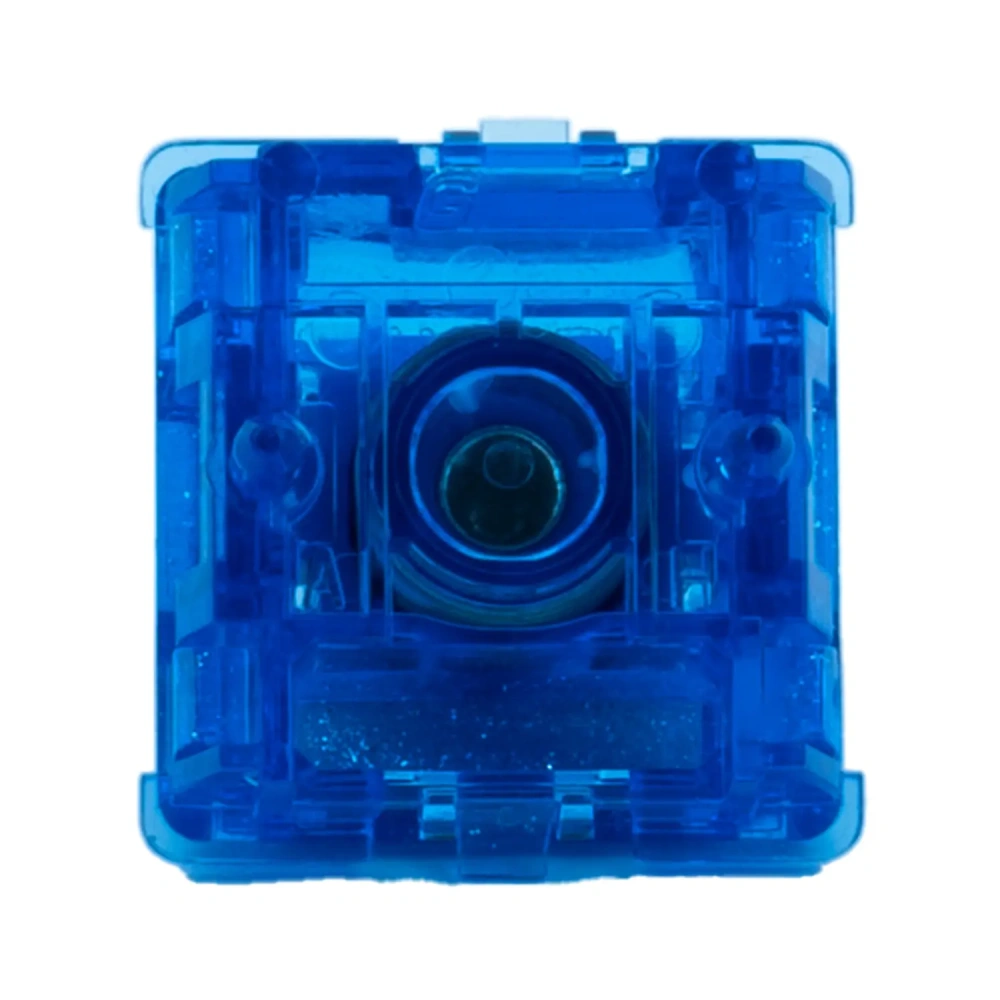

Magnetic Keyboard Compatibility: This magnetic switch N-pole faces down to the PCB board; any keyboard model featuring downward-facing N-pole magnetic switches is compatible with this switch. Please check your keyboard before choosing this item.

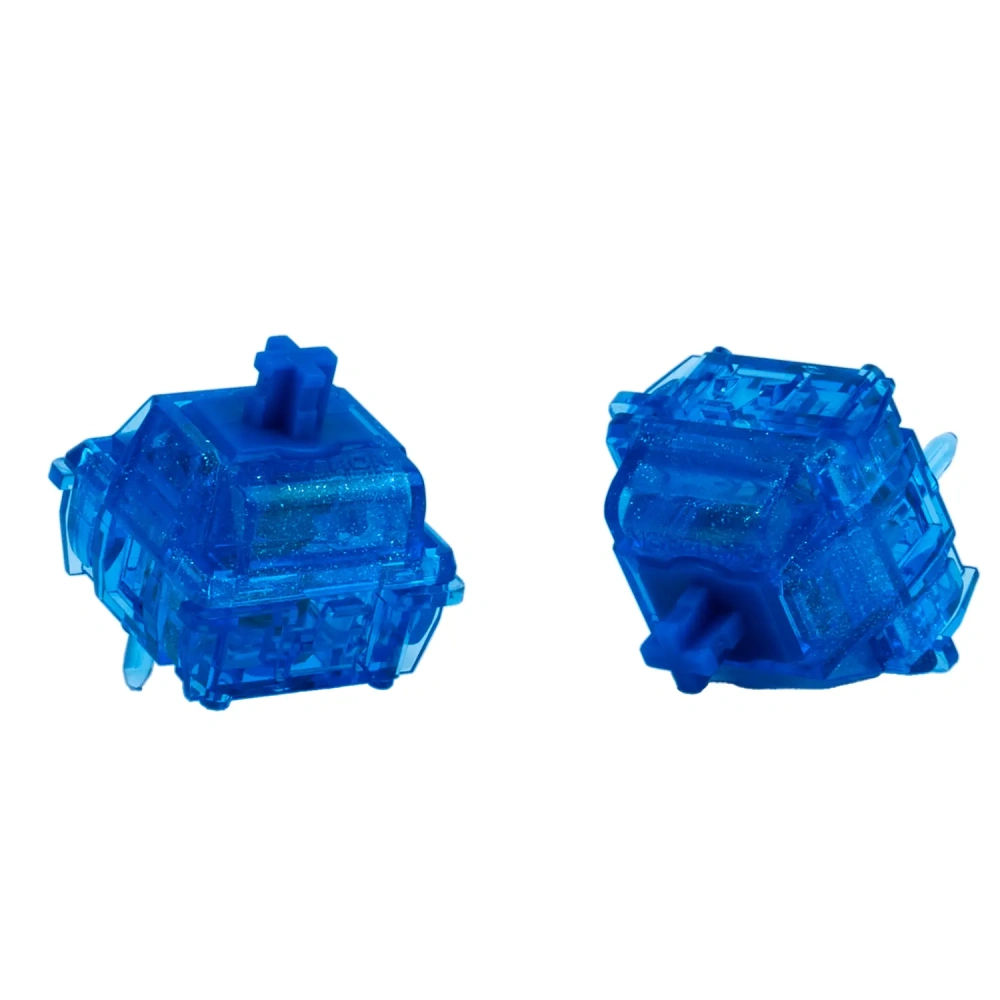

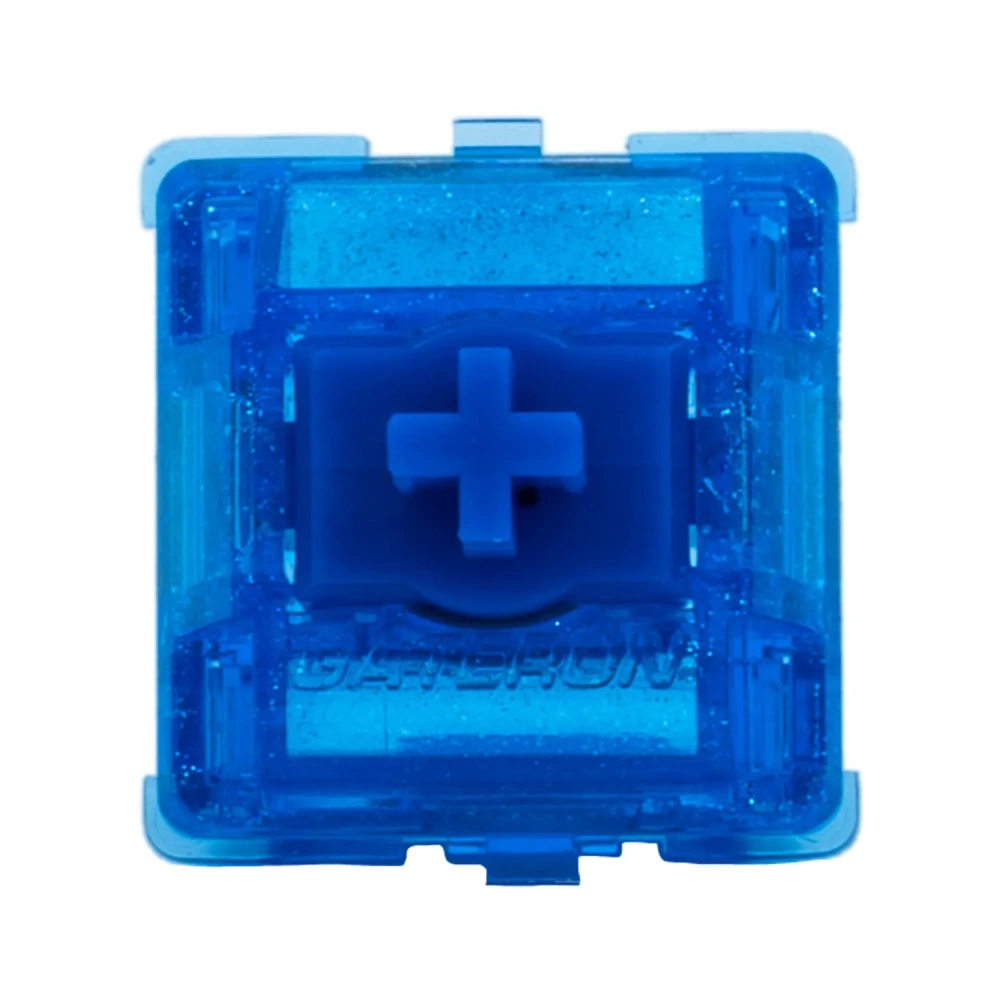

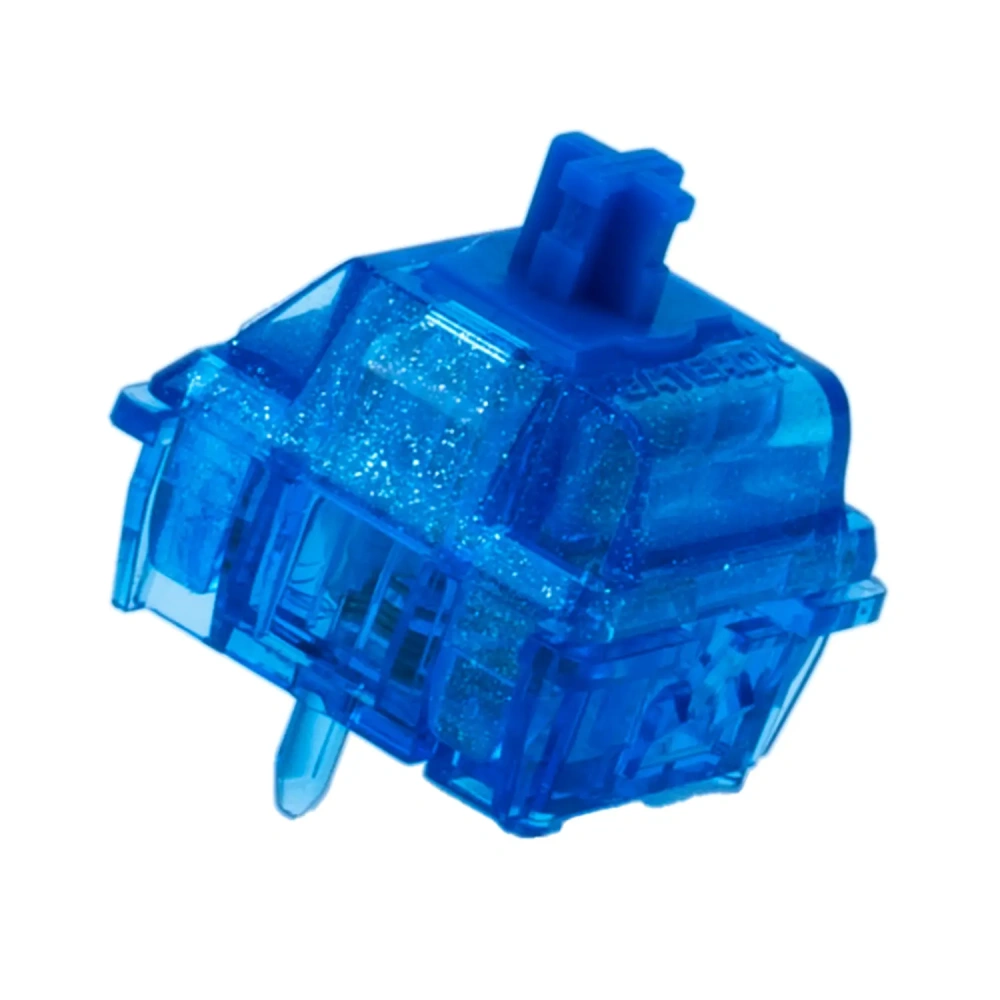

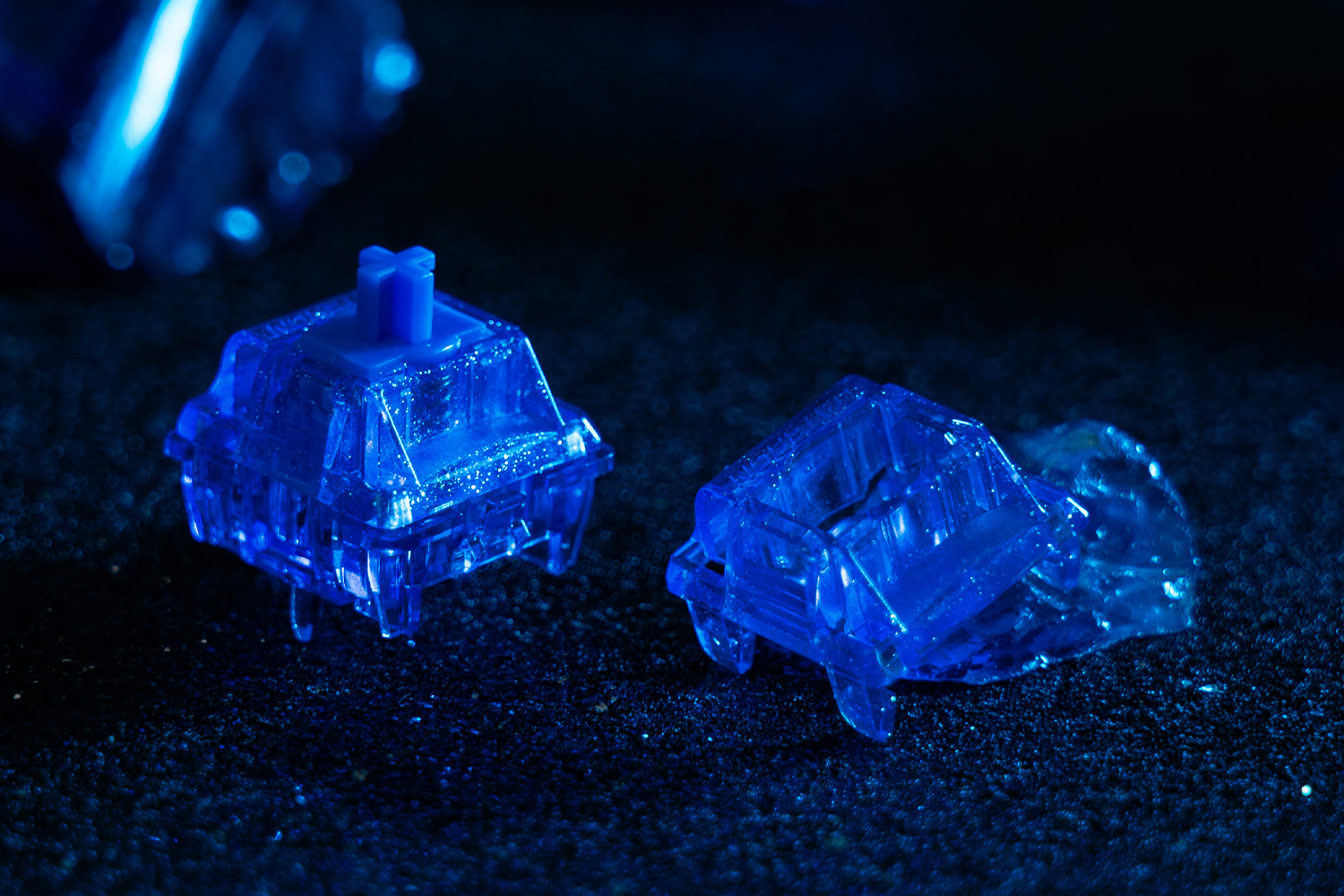

Crystal Sparkle Galaxy Within Full-transparent housing with a blue stem, achieving crystal clear transparency. Top housing infused with glitter craft. Every keystroke gleams with starlight brilliance. Seamlessly synchronised with RGB illumination, delivering immersive fluid-light visuals.

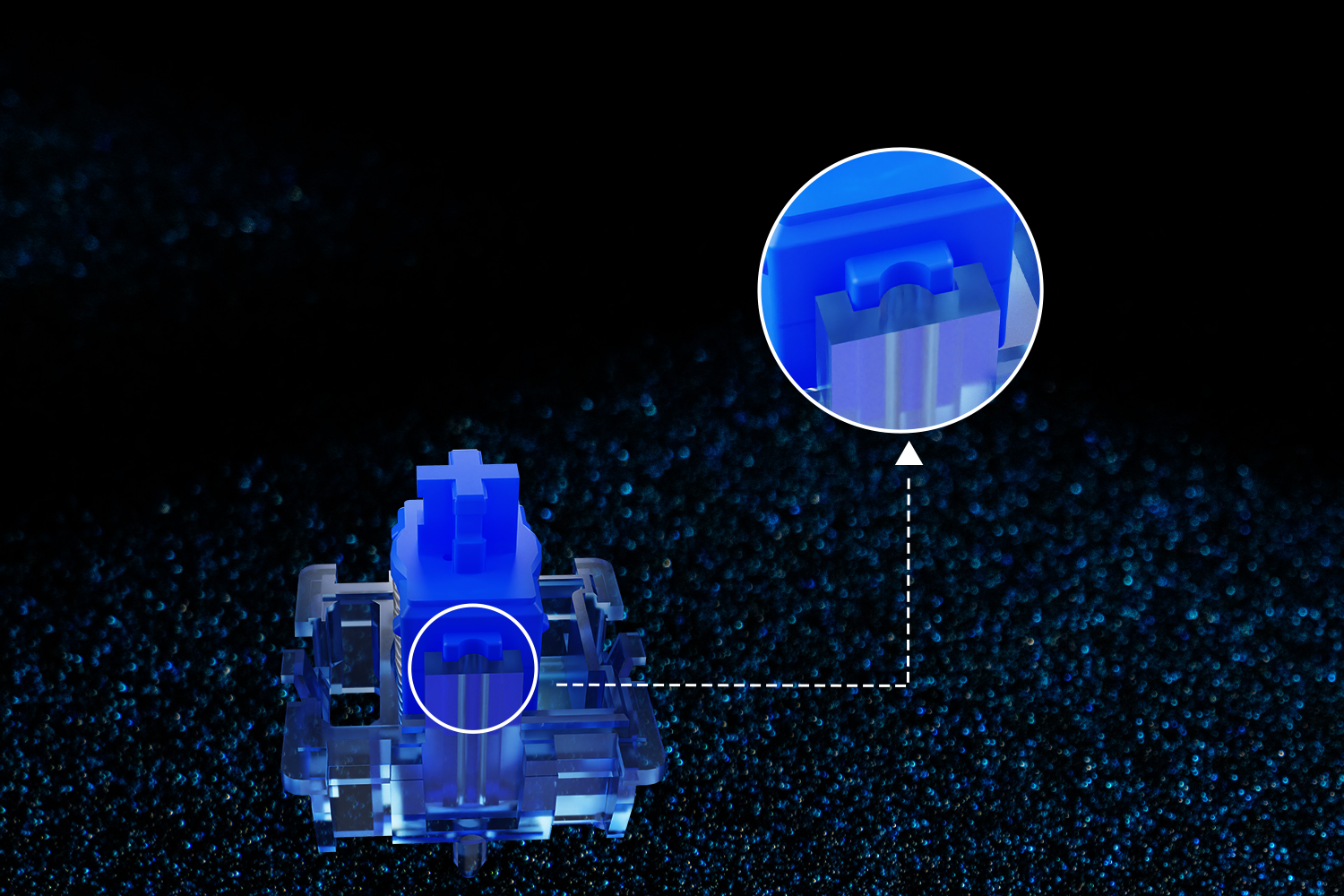

	Powered by Dual Tracks Victory Through Precision U-Rail Inspired Design Precision-Guided Stem Movement Zero wobble persists from bottom-out through rebound.
Zero-Lag Triggering Ultra-Fast Return Optimized spring tension and counterweight delivering feather-light actuation, instant response design, bringing fatigue-free comfort for extended use—seamless transition between Gaming Pro and Typing Modes.

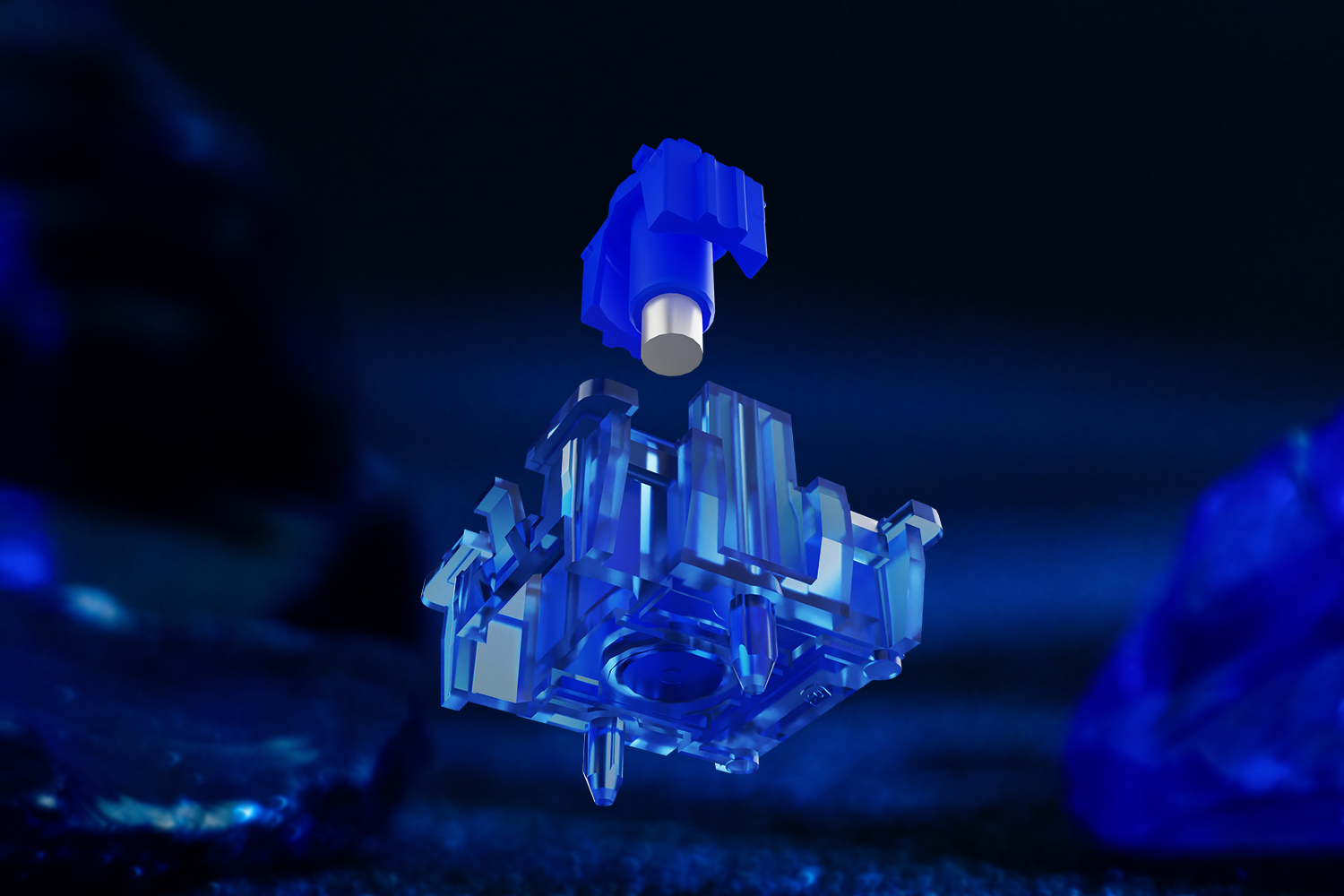

	Premium Magnet Heat-Resistant Stem employs high-temperature-resistant neodymium magnets maintaining stable performance under extreme 150°C conditions, where thermal dissipation is concession, temperature endurance defines fundamental performance.
