Gateron Magnetic Series
| Typing | Initial Force | Bottom-out Force | Total Travel | Spring | Initial Magnetic Flux | Bottom-out Magnetic Flux | |
|

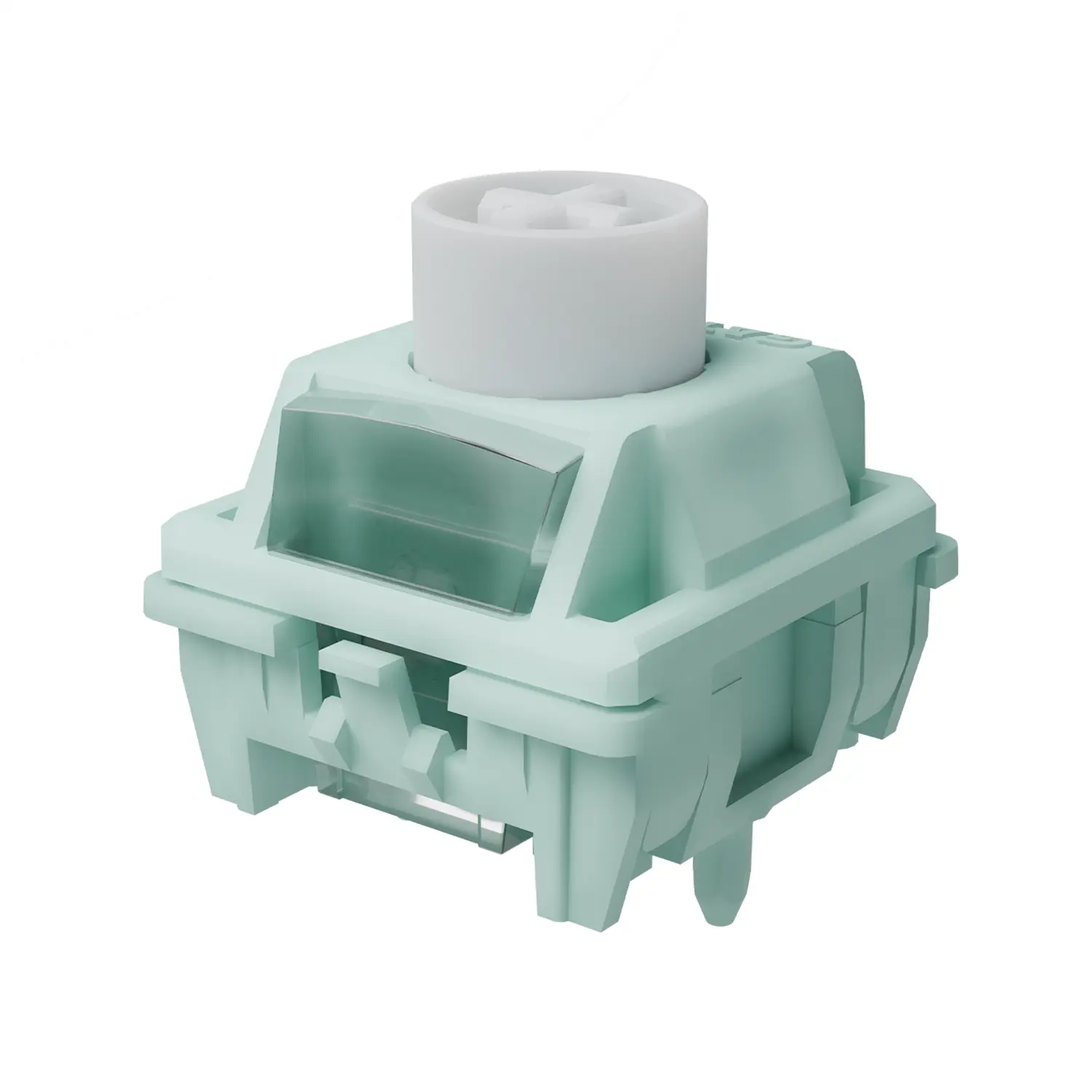

Jade Silent Switch |
Linear | 33±5gf | 45±10gf | 3.2±0.2mm | 125±8GS (PCB1.2mm) | 700±30GS (PCB1.2mm) | |
|

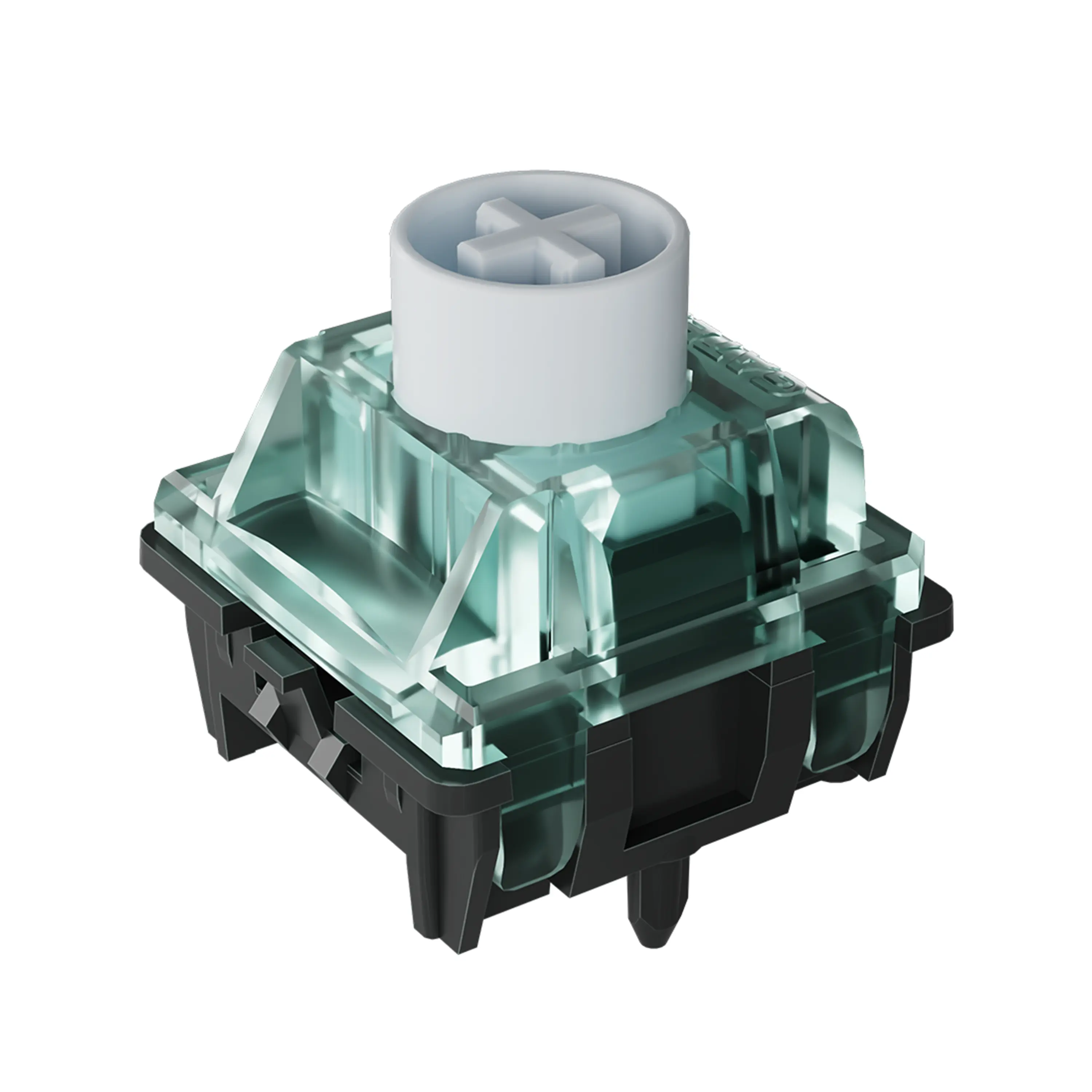

Jade · Attraction Switch |
Linear | 30±3gf | 30±3gf | 3.2±0.2mm | 18mm | 145±8GS (PCB1.2mm) | 570±30GS (PCB1.2mm) |
|

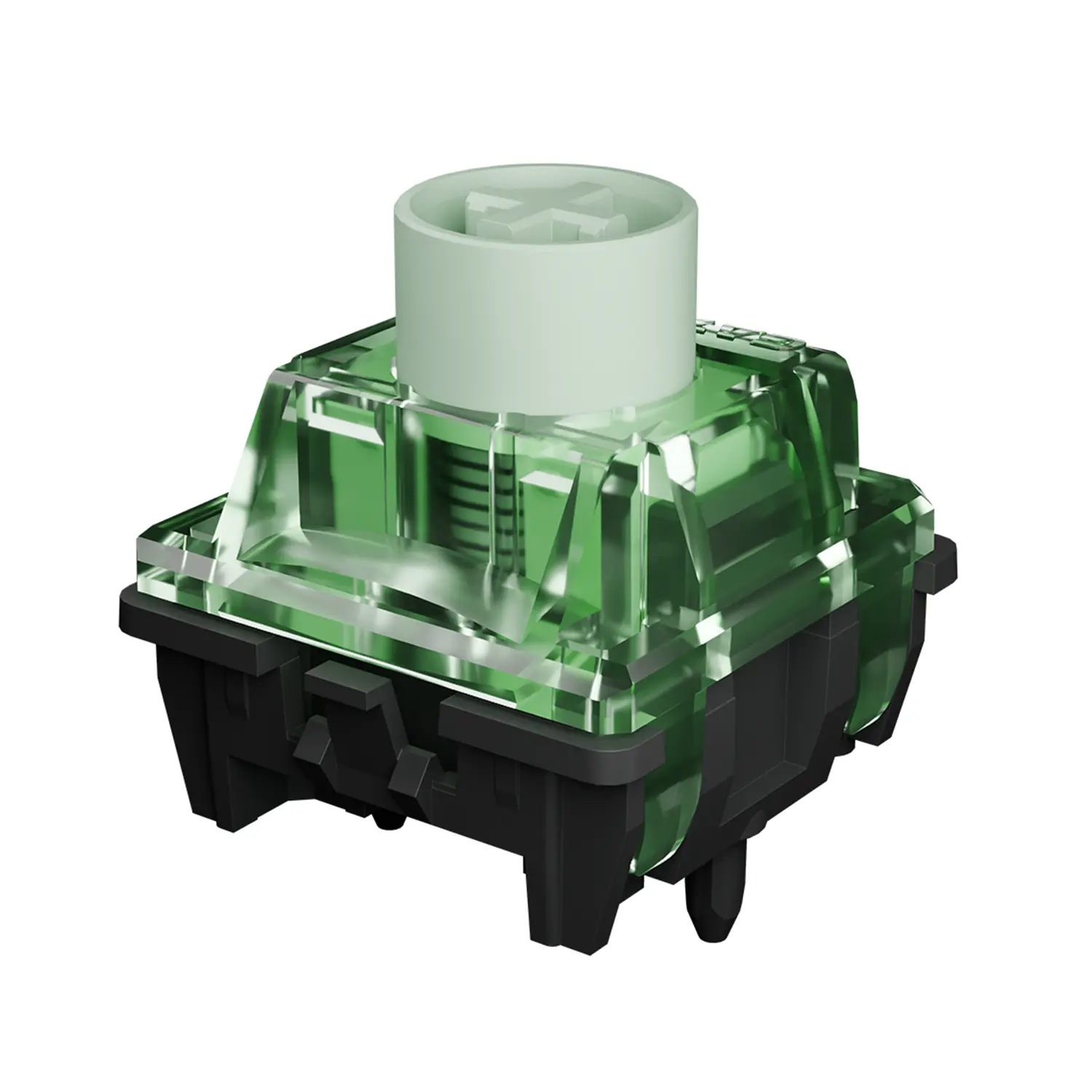

Jade Dragon HE Switch |
Linear | 33±5gf | 45±10gf | 3.2±0.1mm | 18mm | 122±8GS (PCB1.2mm) | 550±30GS (PCB1.2mm) |

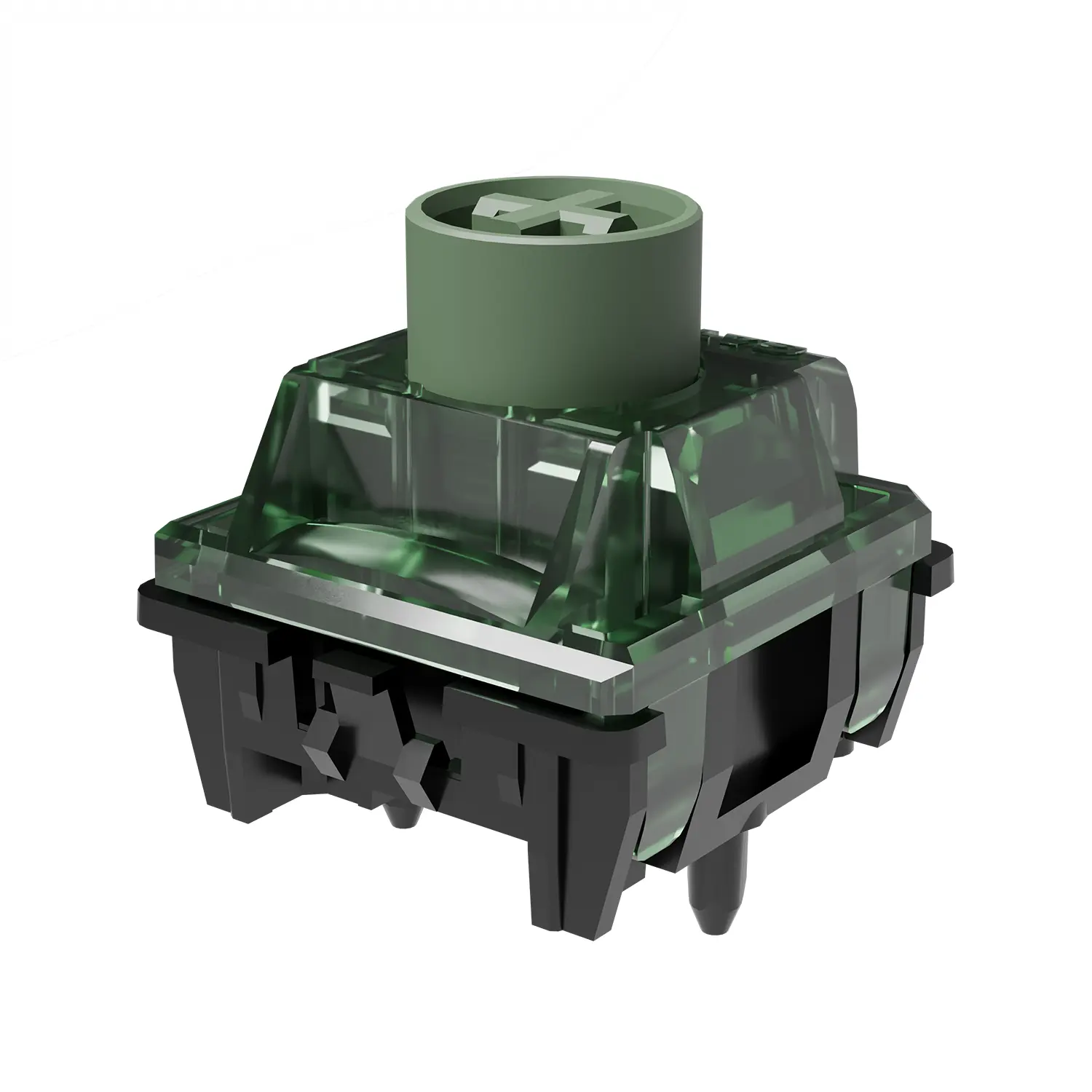

Jade Emerald Switch |
Heavy Tactile | 55±10gf | 3.5±0.1mm | 120±8GS (PCB1.2mm) | 700±30GS (PCB1.2mm) | ||
|
|
Linear | 36±5gf | 3.5±0.1mm | 120±8Gs(PCB 1.2mm) | 700±30Gs(PCB 1.2mm) | ||
|
|
Linear | 30±5gf | 40±10gf | 3.2±0.1mm | 19mm | 122±8GS (PCB1.2mm) | 550±30GS (PCB1.2mm) |
|
|
Linear | 36±5gf | 50±10gf | 3.5±0.1mm | 20mm | 120±8GS (PCB1.2mm) | 700±30GS (PCB1.2mm) |

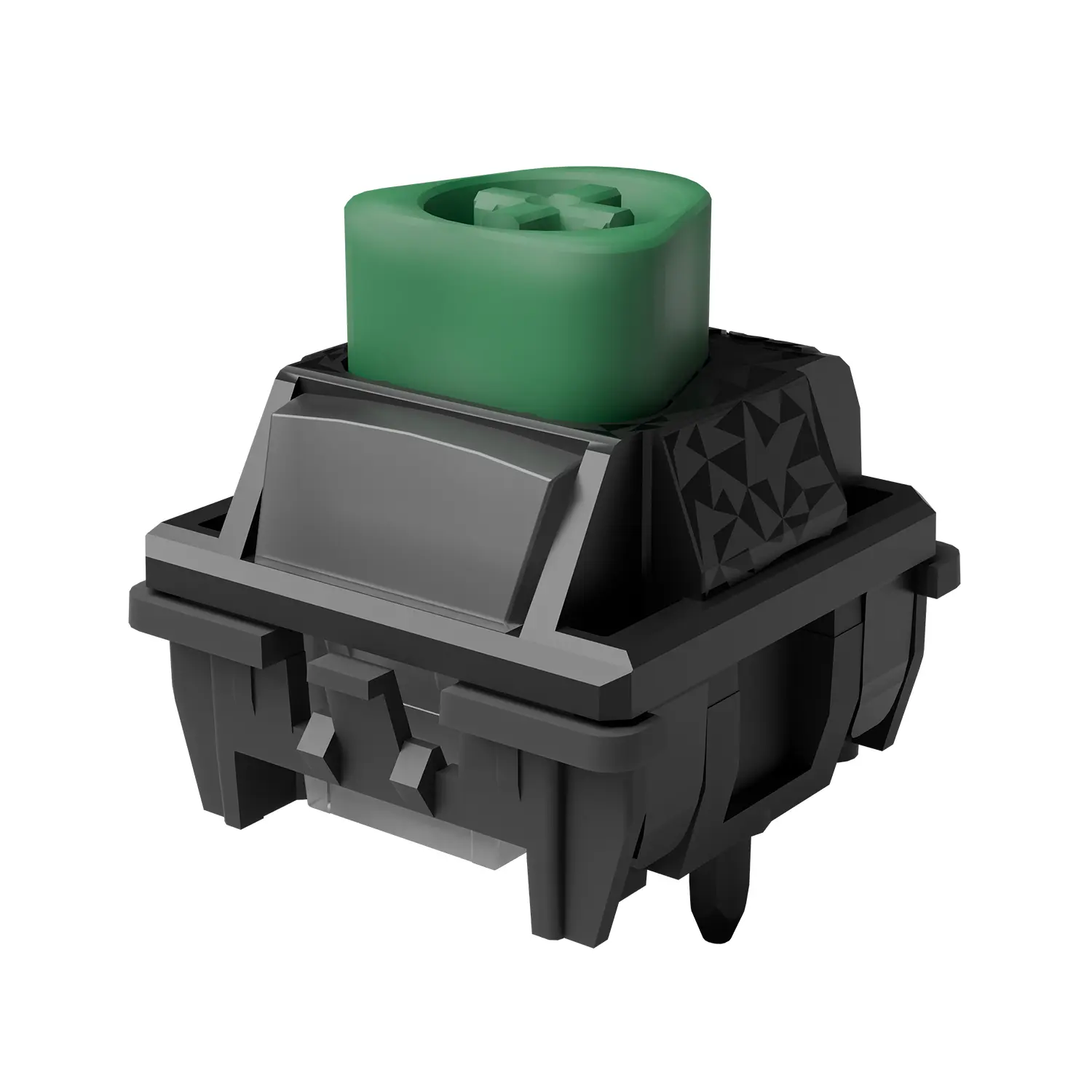

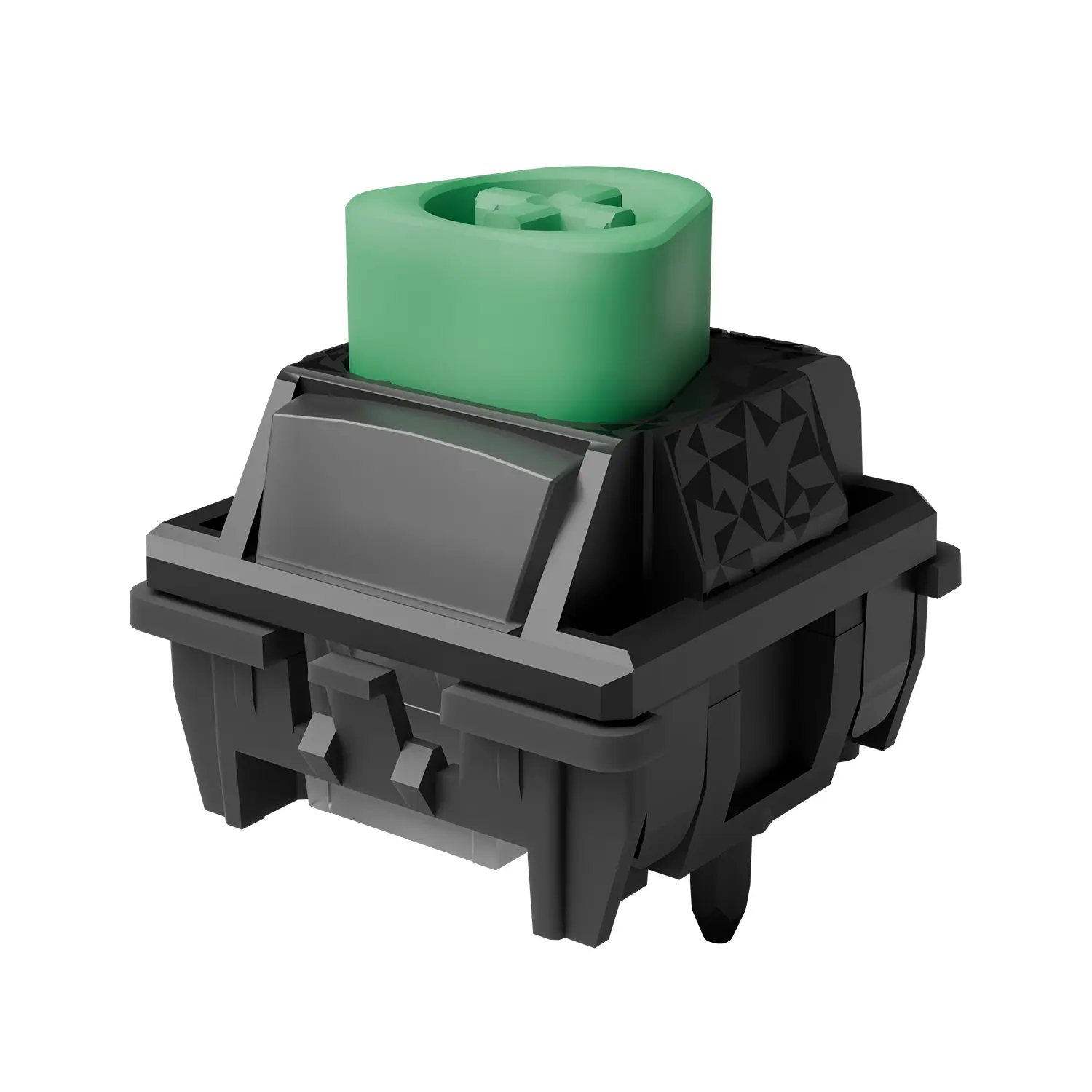

 Jade Delta Dark Switch |
Linear | 38±5gf | 3.5±0.1mm | 20mm | 120±8GS (PCB1.2mm) | 700±30GS (PCB1.2mm) | |
 Jade Delta Light Switch |
Linear | 33±5gf | 3.5±0.1mm | 20mm | 120±8GS (PCB1.2mm) | 700±30GS (PCB1.2mm) | |
|
|
Linear | 30±7gf | 3.5±0.2mm | 120±15Gs | 700±80Gs | ||
|

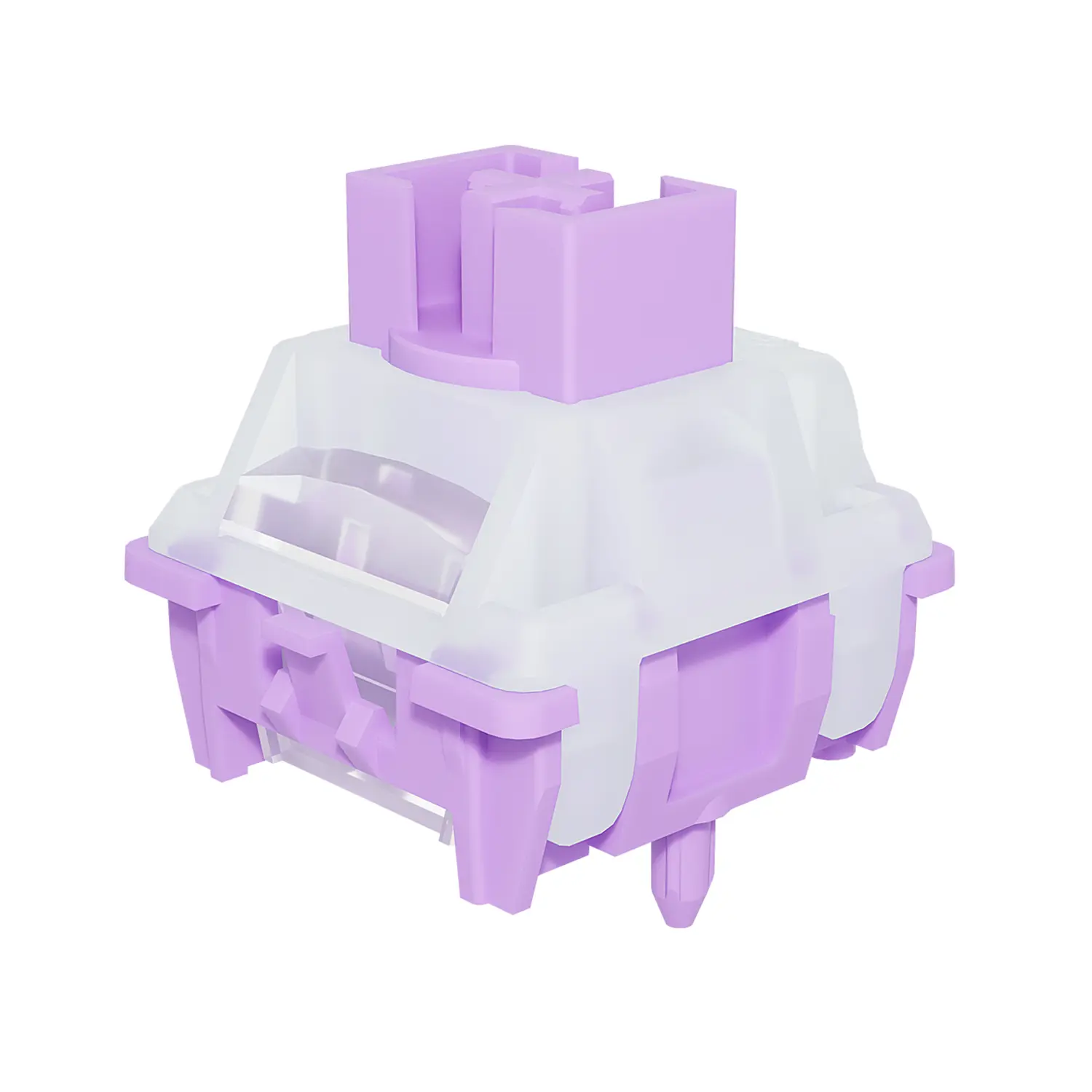

Orchid Switch |
Linear | 30±5gf | 3.5±0.1 mm | 120±8 GS (PCB 1.2 mm) | 700±30 GS (PCB 1.2 mm) | ||
|

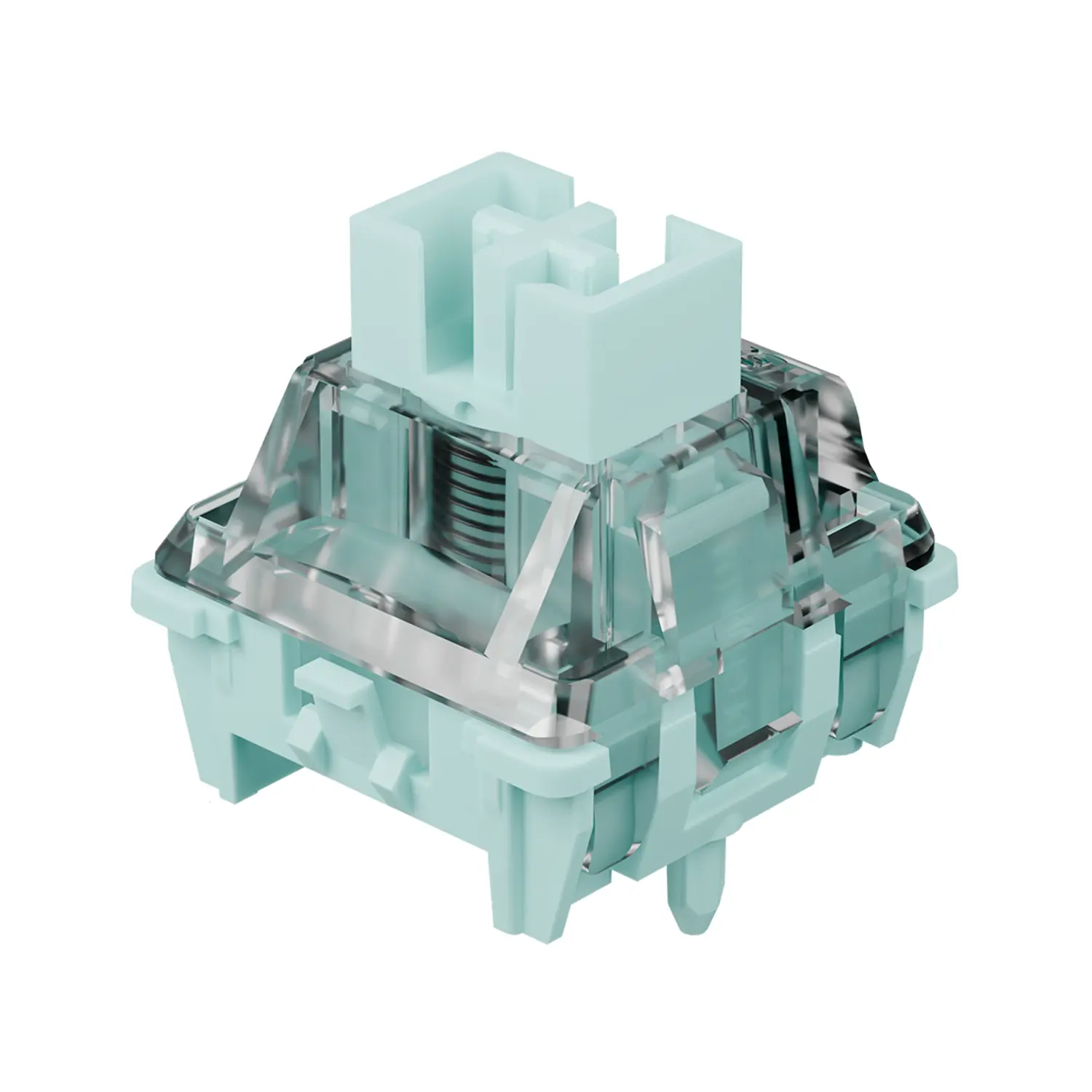

Jade Gaming Switch |
Linear | 36±5gf | 3.5±0.1mm | 120±8Gs(PCB1.2mm) | 700±30Gs(PCB1.2mm) | ||
|

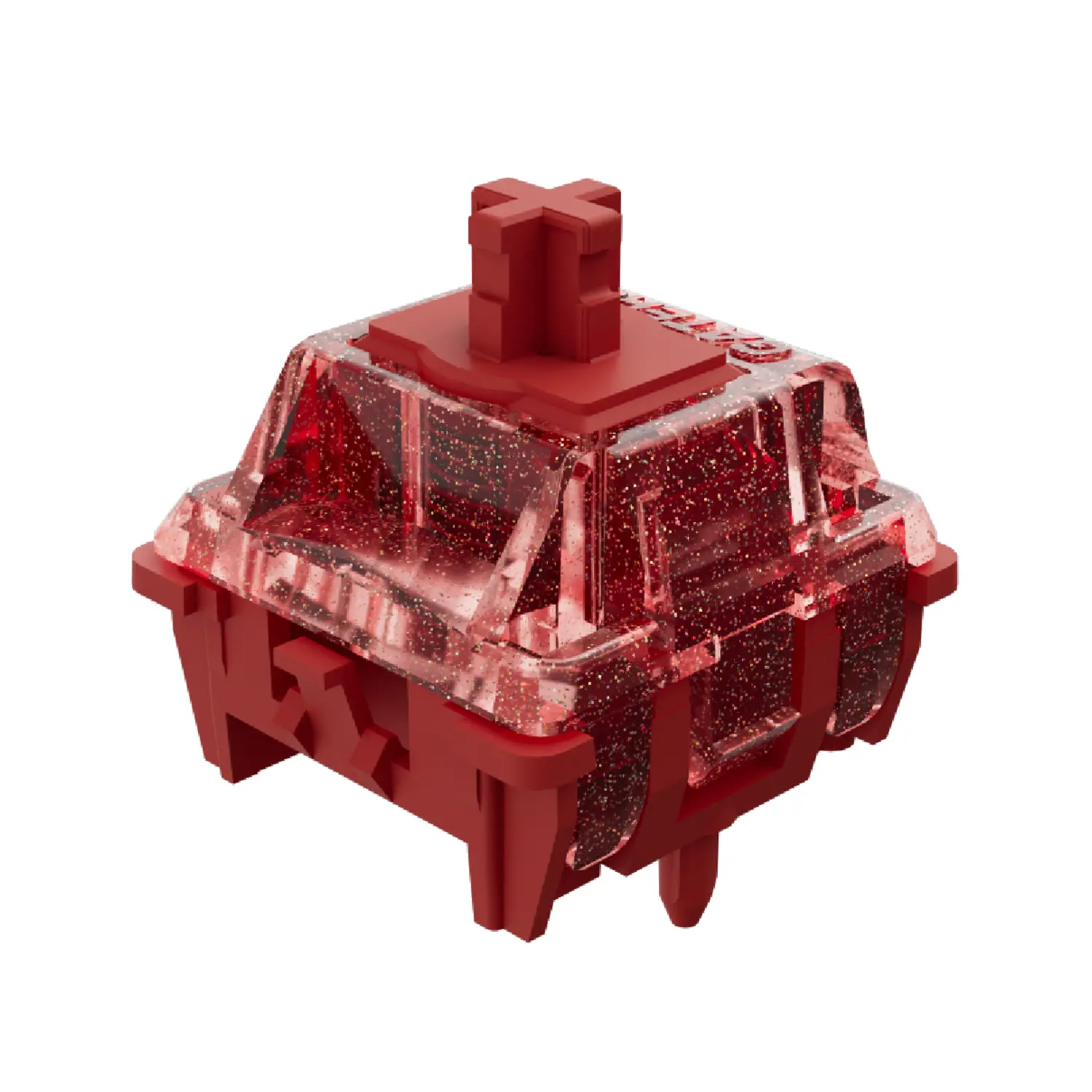

Jade Ruby Switch |
Linear | 36±5gf | 50±10gf | 3.5±0.1m | 20mm | 120±8GS (PCB1.2mm) | 700±30GS (PCB1.2mm) |
|
|
Linear | 36+5gf | 3.5±0.1mm | 120+8GS (PCB1.2mm) | 700+30GS (PCB1.2mm) | ||
|

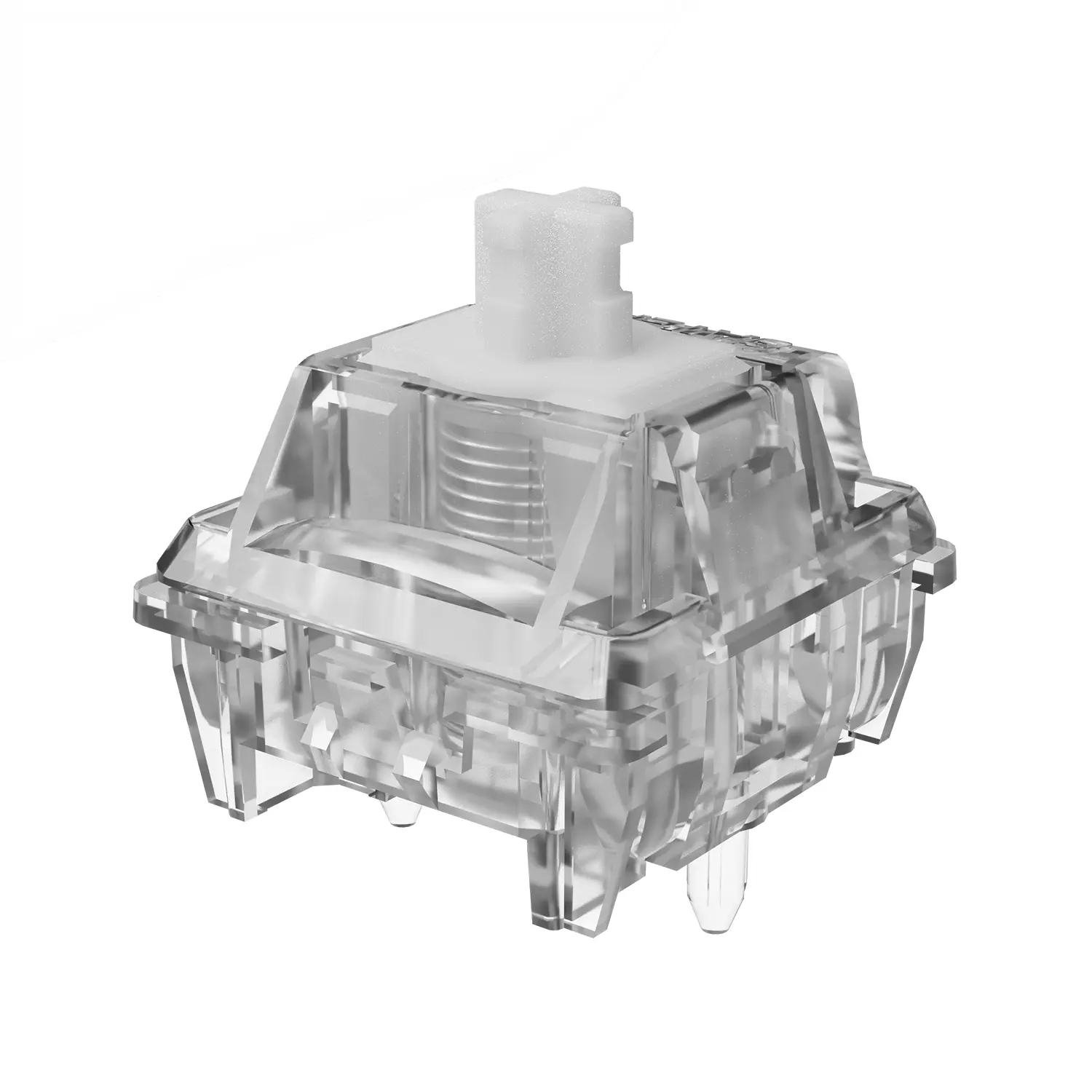

Jade Air Switch |
Linear | 36±5gf | 50±10gf | 3.5±0.1mm | 20mm | 120±8GS (PCB1.2mm) | 700±30GS (PCB1.2mm) |
|
|
Linear | 33±5gf | 45±10gf | 3.5±0.1 mm | 120±8GS (PCB 1.2 mm) | 700±30GS (PCB 1.2 mm) | |
|
|
Linear | 36±5gf |
50±10gf |
3.5±0.1mm | 120±8GS (PCB 1.2 mm) | 700±30GS (PCB 1.2 mm) | |

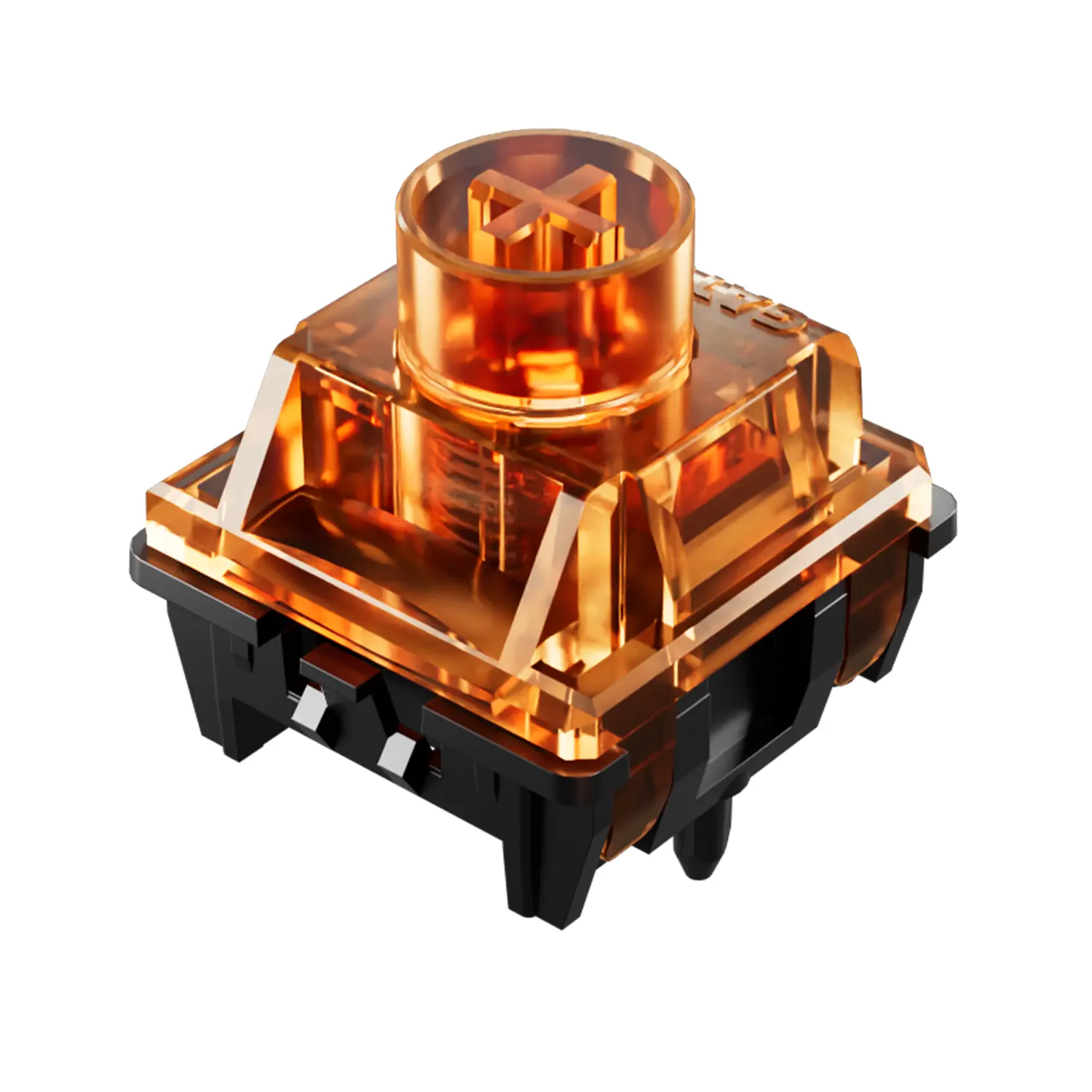

 Spark Dual-Drive Modular Switch |
Linear | 33±5gf | 45±10gf | 3.2±0.1mm | 22mm | 122±8GS (PCB1.2mm) | 550±30GS (PCB1.2mm) |
|
|
Linear | 30±5gf | 3.5±0.2mm | 20mm | 120±8GS (PCB1.2mm) | 700±30GS (PCB1.2mm) | |
|
|
Linear | 36±5gf | 3.5±0.2mm | 20mm | 120±8GS (PCB1.2mm) | 700±30GS (PCB1.2mm) | |
|
|
Linear | 35±10gf | 3.1±0.2mm | 120±15Gs(PCB1.2mm) | 570±80Gs(PCB1.2mm) | ||

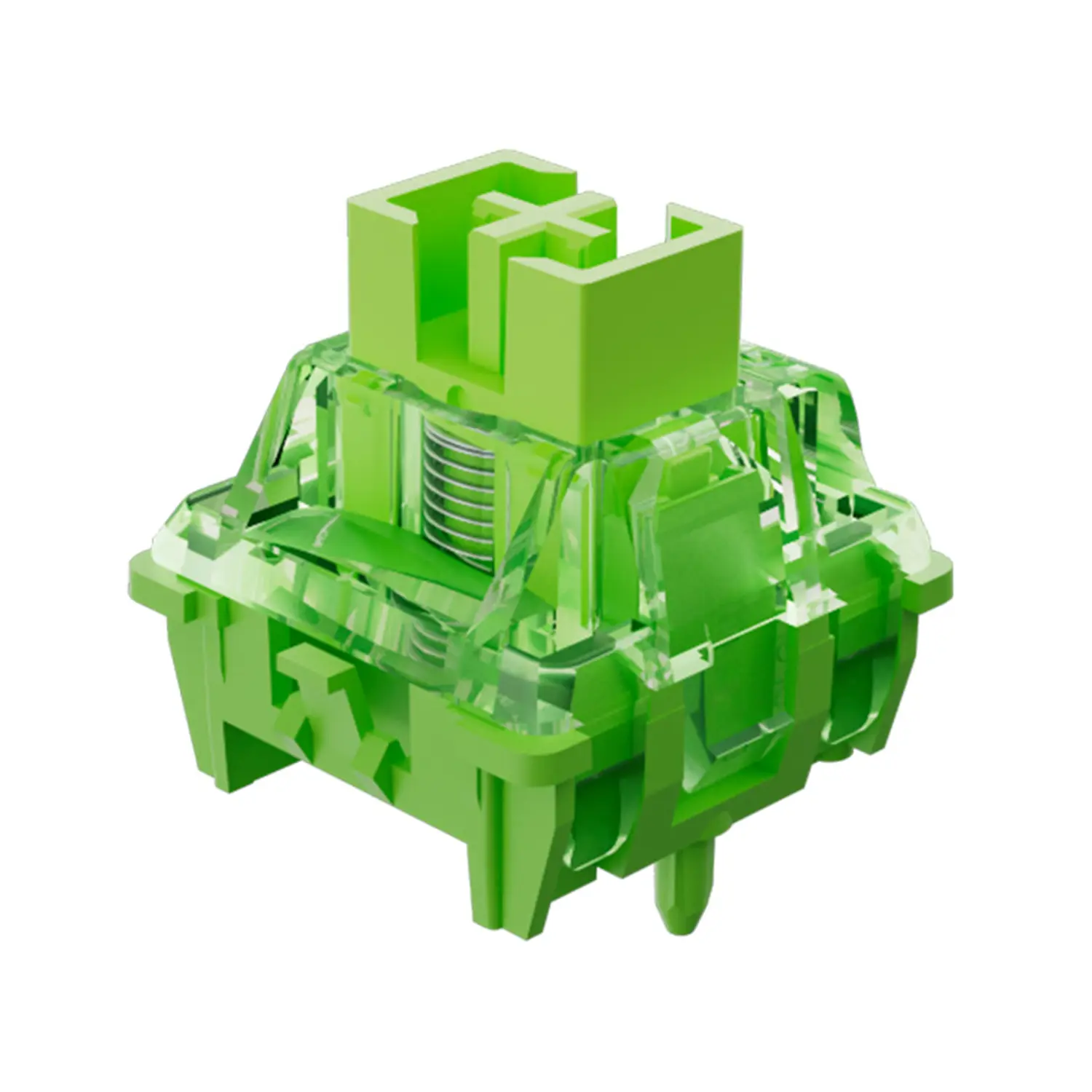

 Green Dragon Switch |
Linear | 33±5gf | 47±10gf | 3.5±0.1mm | 120±8Gs(PCB 1.2mm) | 700±30Gs(PCB 1.2mm) | |
|

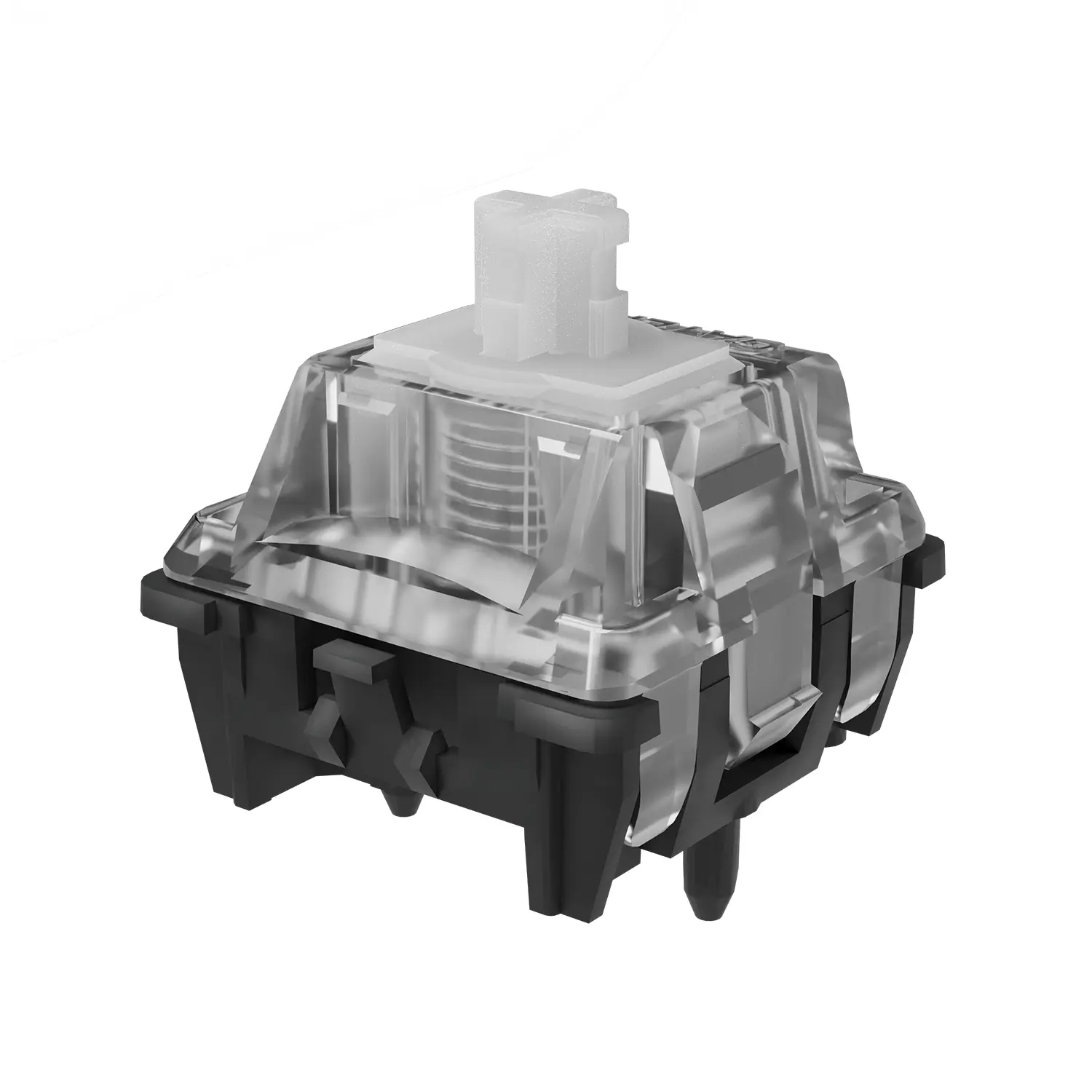

Moonlight Switch |
Linear | 35±6gf | 3.5±0.2mm | 120±15GS (PCB1.2mm) | 700±60GS (PCB1.2mm) | ||
|
|
Linear | 35±5gf | 3.7±0.2mm | ||||
|
|
Linear | 30±10gf | 50gf | 4.0±0.2mm | |||
|
|
Linear | 30gf | 15mm | 102Gs | 905Gs | ||
|
|
Linear | 38gf | 4.1±0.2mm | 20mm | |||

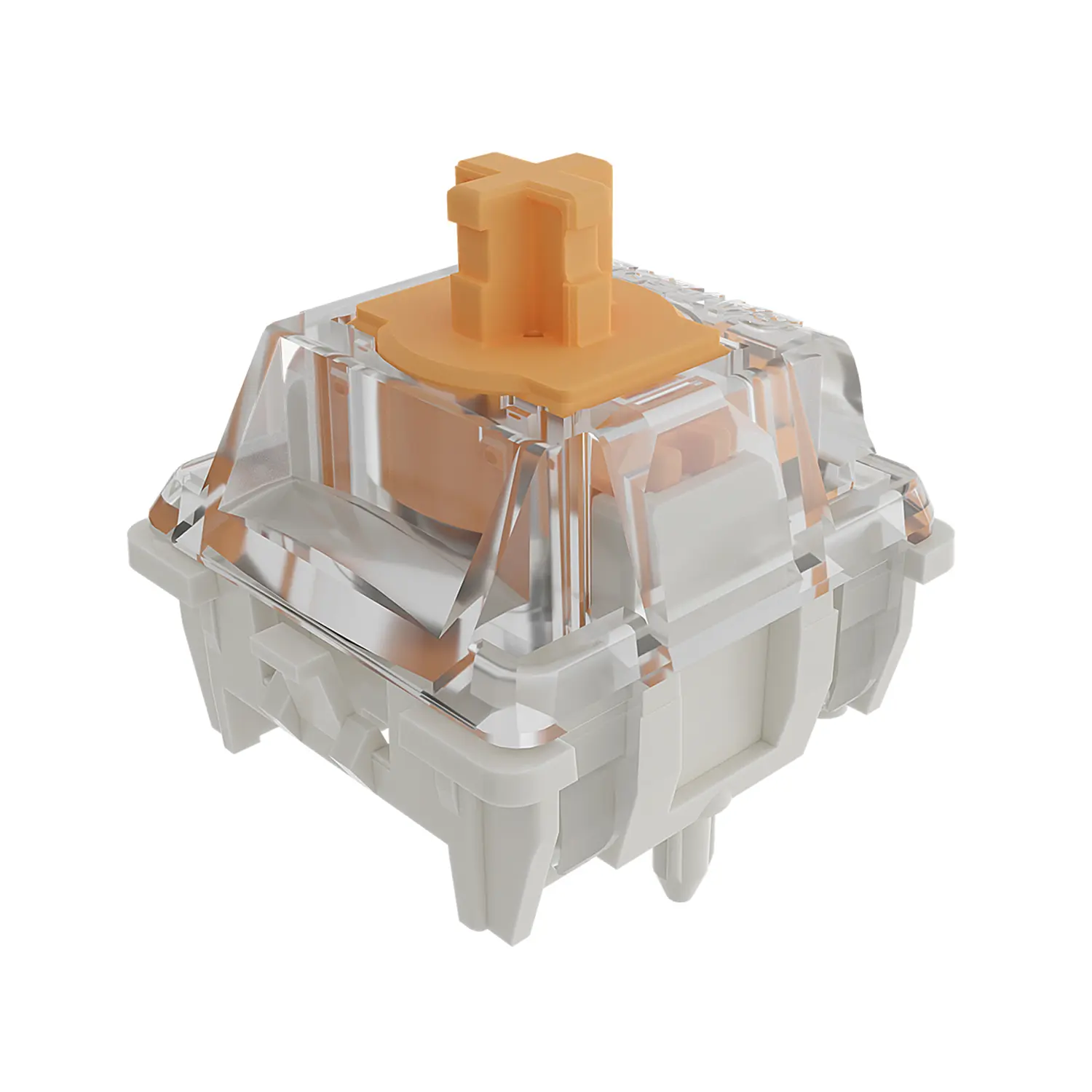

KS-20 Dual-rail Orange Switch |
Linear | 30±7gf | 4.1±0.2mm | 102±15Gs | 905±80Gs | ||
|
|
Linear | 30±10gf | 3.5±0.2mm | 18mm | |||

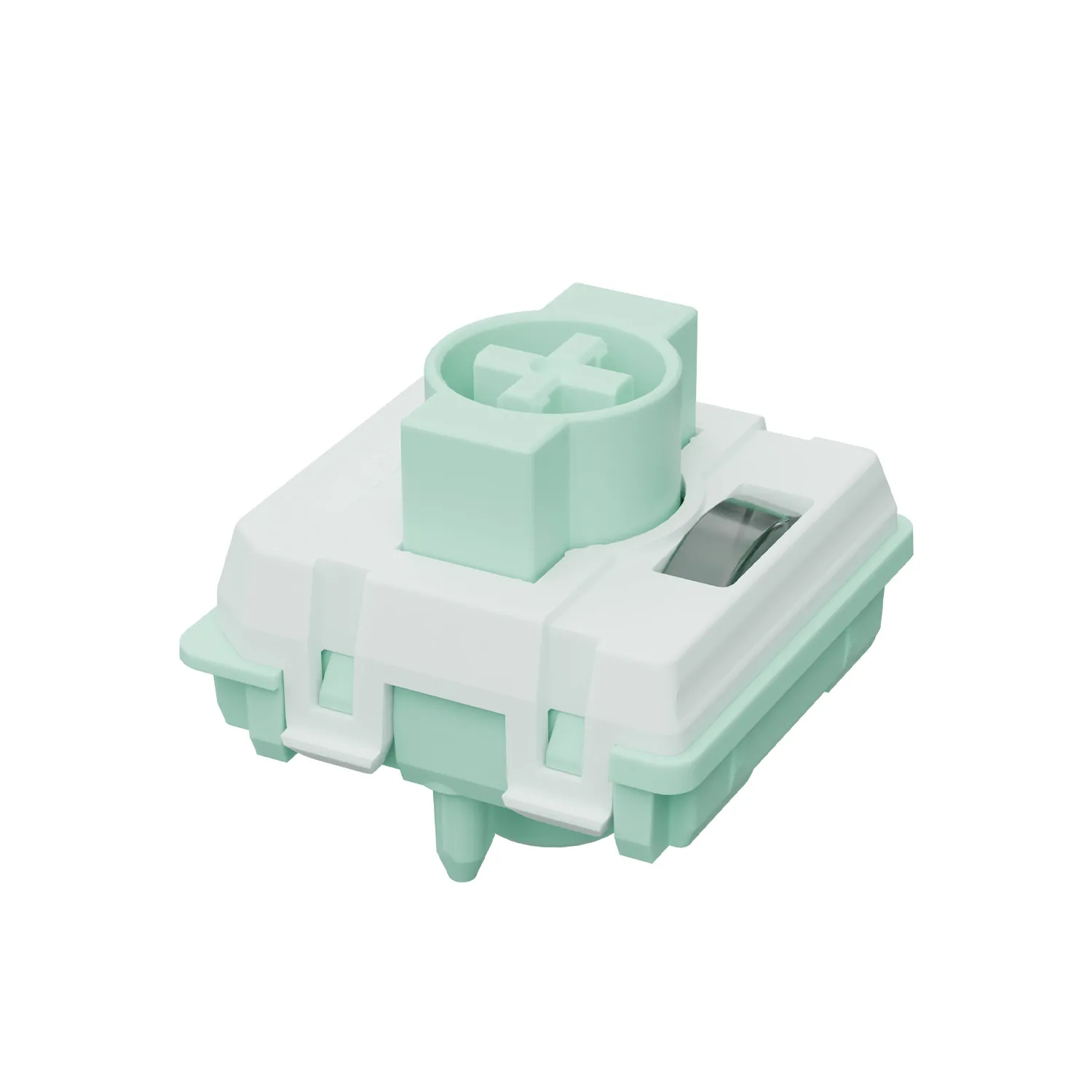

 Low Profile Jade Pro Switch |
Linear | 40±10gf | 3.5±0.2mm | 18mm |
